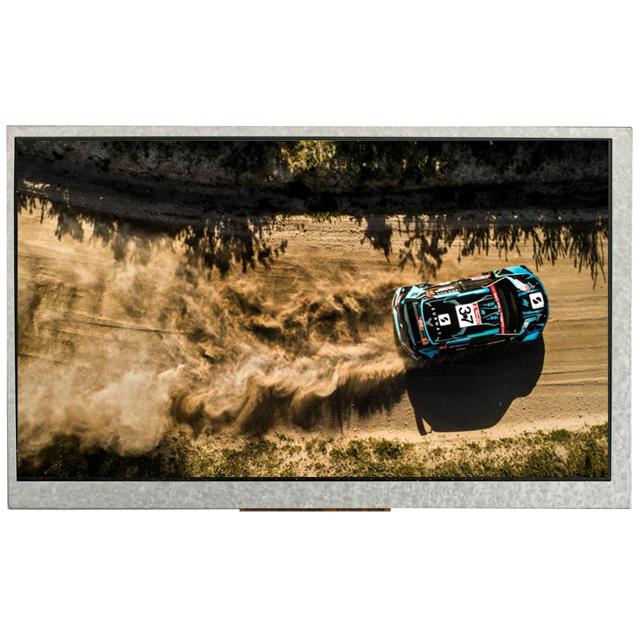

MDT0700A12SS-HDMI
ActiveMidas Displays
LCD DISPLAY TFT 7" 800X480
MDT0700A12SS-HDMI
ActiveMidas Displays
LCD DISPLAY TFT 7" 800X480
Description
General part information
MDT0700A12SS-HDMI
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color HDMI 7" (177.80mm) 800 x 480 (WVGA)
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT0700A12SS-HDMI |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | TFP401 |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.18 mm |
| Dot Pitch Width | 0.06 mm |
| Dot Pixels (Horizontal) | 800 pixels |
| Dot Pixels (Resolution) | WVGA |
| Dot Pixels (Vertical) | 480 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | HDMI |
| Viewing Area Height | 85.92 mm |
| Viewing Area Width | 154.08 mm |
