1-967412-2
ActiveTE Connectivity AMP Connectors

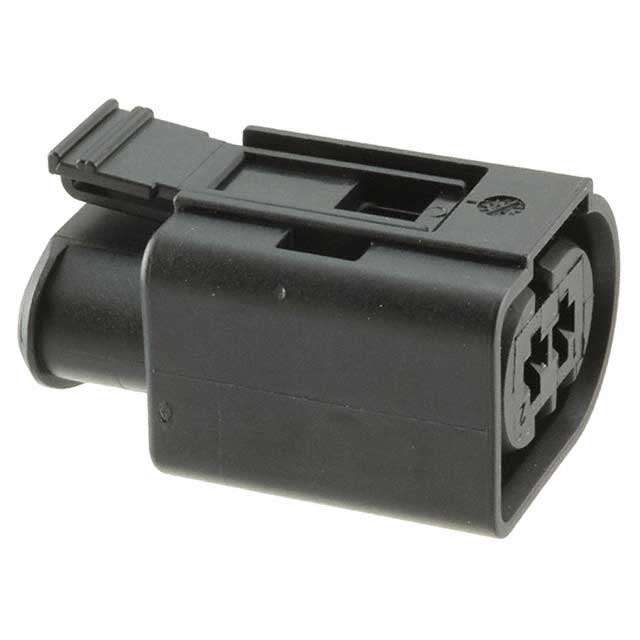

CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967412-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967412-2 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Sealed |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.78 | |
| 10 | $ 1.59 | |||
| 25 | $ 1.58 | |||
| 50 | $ 1.57 | |||
| 100 | $ 1.44 | |||
| 250 | $ 1.43 | |||
| 500 | $ 1.42 | |||
967412 Series
CONN RCPT HSG 2POS 5.00MM
| Part | Number of Positions | Number of Rows | Connector Type | Contact Termination | Pitch [x] | Pitch [x] | Contact Type | Note | Features | Color | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967412-2 | 2 | 1 | Receptacle | Crimp | 5 mm | 0.197 in | Female Socket | Contacts Not Included | Sealed | Natural | -40 °C | 120 °C | Free Hanging (In-Line) |
Description
General part information
967412 Series
2 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
