11675-4
ActiveEaton - Electronics Division

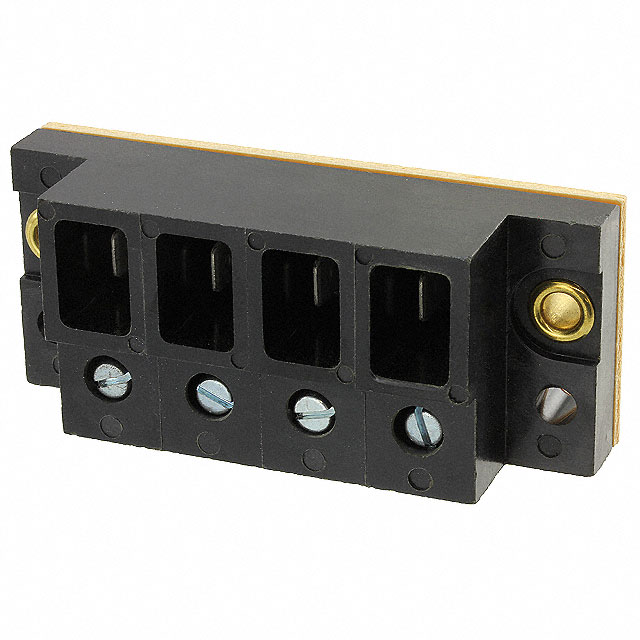

POWER DISTRIBUTION BLOCK 4P MAGNUM QUICK CONNECT POWER DISTRIBUTION BLOCK
11675-4
ActiveEaton - Electronics Division
POWER DISTRIBUTION BLOCK 4P MAGNUM QUICK CONNECT POWER DISTRIBUTION BLOCK
Description
General part information
11675-4
4 Pole Power Distribution Block 40 A 250 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 11675-4 |
|---|---|
| Current Rating | 40 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Material | CU |
| Line Side Wire Size (Max) | 14 AWG |
| Line Side Wire Size (Min) | 8 AWG |
| Load Side Connection Type | Quick Connects |
| Load Side Connection Type Size | 0.25 in |
| Load Side Connections Per Pole | 3 |
| Number of Poles | 4 |
| Type | Power Distribution Block |
| Voltage - Rated | 250 V |
