1-35478-0
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL 10-12AWG COPPER YELLOW 38.35MM TIN T/R
1-35478-0
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL 10-12AWG COPPER YELLOW 38.35MM TIN T/R
Description
General part information
1-35478-0

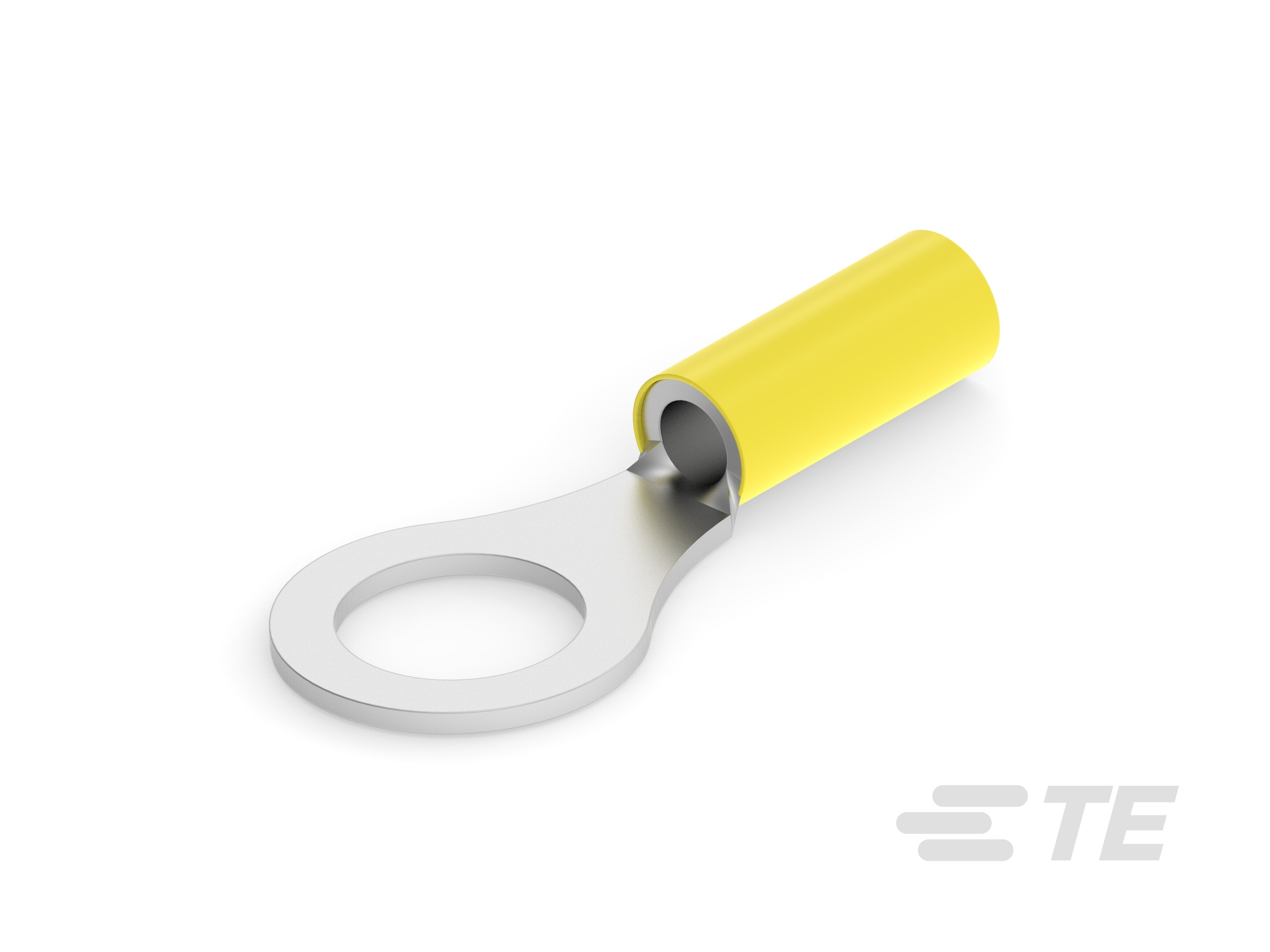

Closed Ring Tongue Terminal, 12 – 10 AWG, 3/8 Stud, 9.91 mm [.39 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-35478-0 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 1.51 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.375 in |
| Stud/Tab Size | 3 Stud, 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.04 in |
| Width - Outer Edges | 0.593 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
