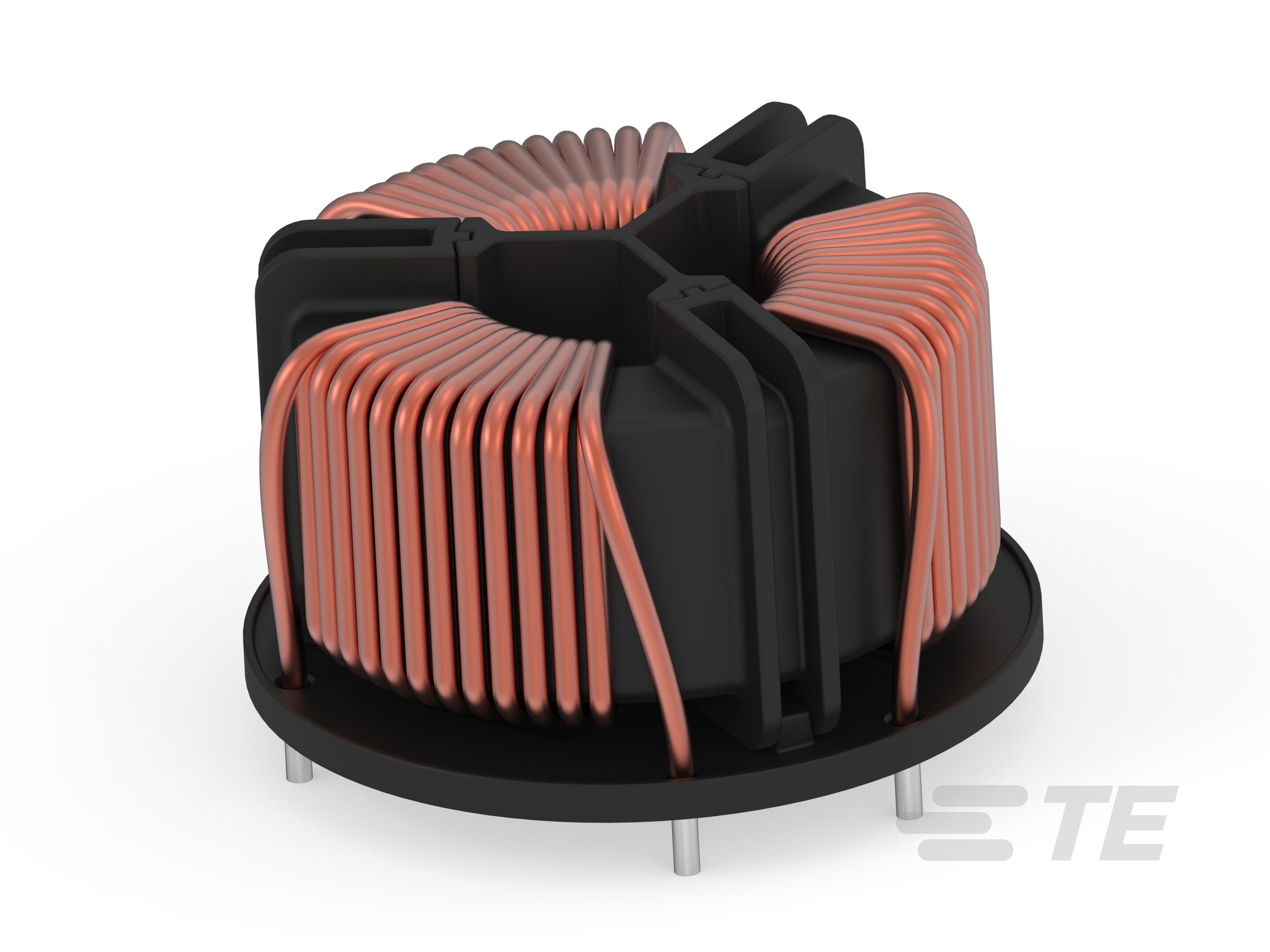

Specification	RT8132-16-3M0

Current Rating (Max)	16 A
DC Resistance (DCR) (Max)	8 mOhm
DC Resistance (DCR) (Typ)	8 mOhm
Filter Type	Power Line
Height (Max)	1.457 in
Inductance	3 mH
Mounting Type	Through Hole
Number of Lines	3
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	6 PC Pin, Horizontal
Package Name	Horizontal
Pad Count	6 PC Pin
Size / Dimension Diameter	2.244 in
Voltage Rating - AC	600 VAC

Schaffner RT-Series Series

...

Part	Number of Lines	Package / Case	Package Name	Package Leads	Operating Temperature (Max)	Operating Temperature (Min)	DC Resistance (DCR) (Max)	Size / Dimension Length	Size / Dimension Width	Voltage Rating - AC	Mounting Type	Filter Type	Height (Max)	Inductance	Approval Agency	Pin Count	Pad Count	Voltage Rating - DC	Current Rating (Max)	DC Resistance (DCR) (Typ)	Size / Dimension Diameter	Features
TE Connectivity AMP Connectors RT8532-63-0M3	3	10 PC Pin Vertical	Vertical	10 PC Pin	100 °C	-40 °C	0.8 mOhm	2.52 in	1.654 in	600 VAC	Through Hole	Power Line	2.638 in	300 µH	UR
TE Connectivity AMP Connectors RT8522-63-0M5	2	Vertical	Vertical	8 PC Pin	100 °C	-40 °C	1 mOhm	2.52 in	1.654 in	300 V	Through Hole	Power Line	2.52 in	500 µH	UR	8	8 PC Pin	425 VDC
TE Connectivity AMP Connectors RT8522-12-5M0	2	4 PC Pin Vertical	Vertical	4 Leads	100 °C	-40 °C	14 mOhm	1.969 in	1.26 in	300 V	Through Hole	Power Line	2.047 in	5 mH				425 VDC	12 A	14 mOhm
TE Connectivity AMP Connectors RT8132-6-6M0	3	6 PC Pin Horizontal	Horizontal		100 °C	-40 °C	27 mOhm			600 VAC	Through Hole	Power Line	1.339 in	6 mH			6 PC Pin		6 A	27 mOhm
TE Connectivity AMP Connectors RT8122-12-5M0	2	4 PC Pin Horizontal	Horizontal	4 Leads	100 °C	-40 °C	14 mOhm			300 V	Through Hole	Power Line	1.299 in	5 mH				425 VDC	12 A	14 mOhm	2.008 in
TE Connectivity AMP Connectors RT8532-63-0M3	3	10 PC Pin Vertical	Vertical	10 PC Pin	100 °C	-40 °C	0.8 mOhm	2.52 in	1.654 in	600 VAC	Through Hole	Power Line	2.638 in	300 µH	UR
TE Connectivity AMP Connectors RT8122-50-1M0	2		Horizontal	8 Leads	100 °C	-40 °C	1.7 mOhm			300 V	Through Hole	Power Line	1.614 in	1 mH	UR		8 PC Pin	425 VDC			2.598 in
TE Connectivity AMP Connectors RT8521-63-4M4	2	4 PC Pin Vertical	Vertical	4 Leads	100 °C	-40 °C		2.52 in	1.654 in	300 V	Through Hole	Power Line	2.52 in	4.4 mH	UR			600 V	63 A			Nanocrystalline Core
TE Connectivity AMP Connectors RT8531-32-10M1	3	Vertical	Vertical		100 °C	-40 °C		2.362 in	1.496 in	600 VAC	Through Hole	Power Line	2.48 in	10.1 mH	UR	6	6 PC Pin		32 A			Nanocrystalline Core
TE Connectivity AMP Connectors RT8532-20-2M5	3	Vertical	Vertical		100 °C	-40 °C	7 mOhm	2.205 in	1.457 in	600 VAC	Through Hole	Power Line	2.362 in	2.5 mH		6	6 PC Pin		20 A	7 mOhm
