EP2B942M063AZS
ActiveVishay Dale
EP2 HIGH ENERGY WET NCNR
EP2B942M063AZS
ActiveVishay Dale
EP2 HIGH ENERGY WET NCNR
Description
General part information
EP2B942M063AZS

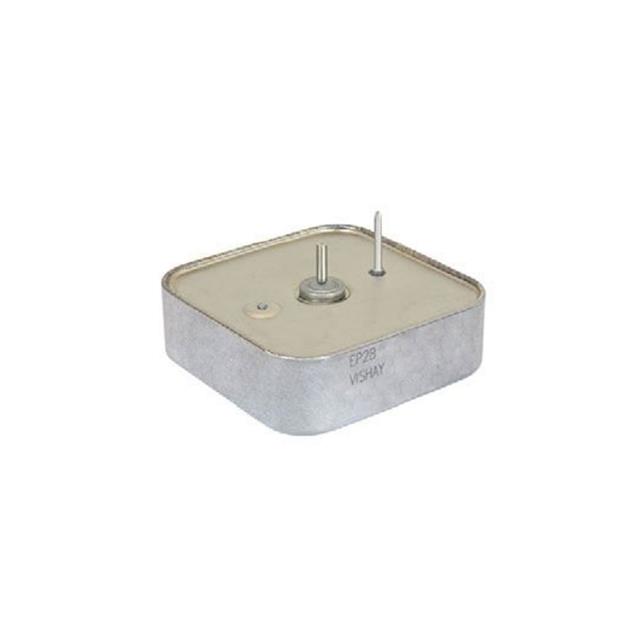

9.4 mF Hermetically Sealed Tantalum Capacitors 63 V Radial, Can 25mOhm @ 1kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | EP2B942M063AZS |
|---|---|
| Capacitance | 9.4 mF |
| ESR (Equivalent Series Resistance) | 25 mOhm |
| Features | Wet Tantalum |
| Height - Seated (Max) | 0.453 in |
| Lead Spacing | 0.8 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 1.4 in |
| Size / Dimension Width | 1.4 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 63 V |
