086-3SBSMR+
ActiveMini-Circuits
HFLEX BL CA SFB/SMR 3" ROHS
086-3SBSMR+
ActiveMini-Circuits
HFLEX BL CA SFB/SMR 3" ROHS
Description
General part information
086-3SBSMR+

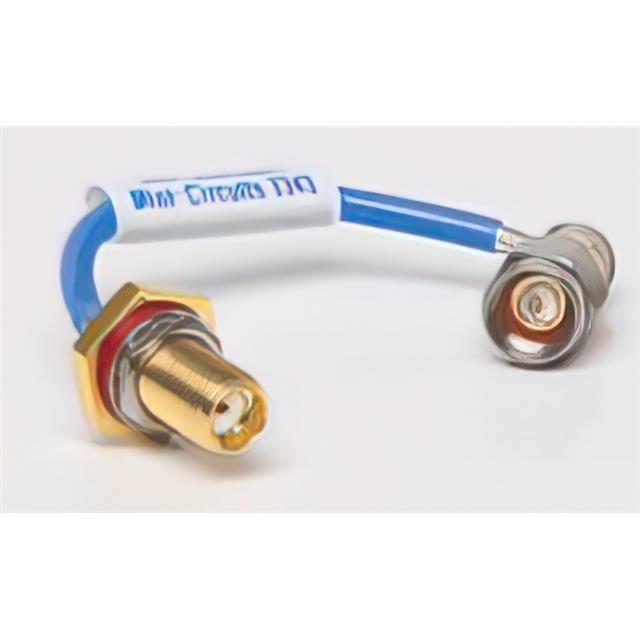

Cable Assembly Coaxial SMA to SMA Hand Formable .086 3.000" (76.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 086-3SBSMR+ |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Hand Formable |
| Cable Type Size | 0.086 |
| Color | Blue |
| Frequency - Max | 18 GHz |
| Length | 3 " |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
