PE4694
ActivePasternack

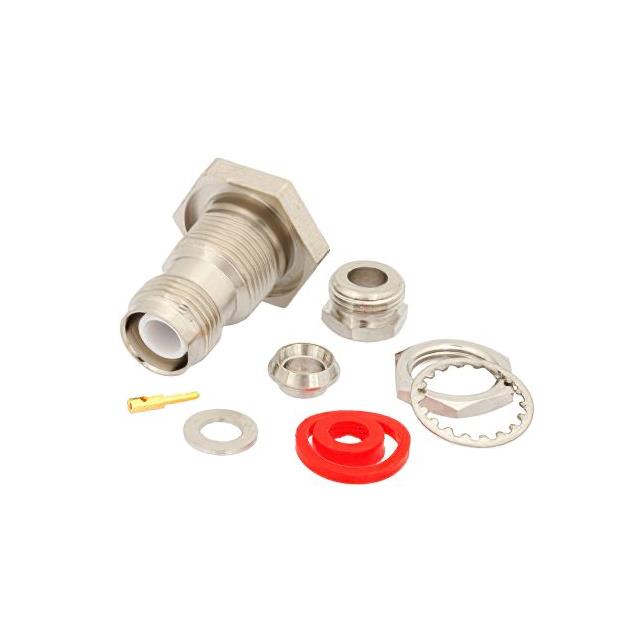

RP-TNC FEMALE BULKHEAD MOUNT CON
PE4694
ActivePasternack
RP-TNC FEMALE BULKHEAD MOUNT CON
Description
General part information
PE4694
RP-TNC Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4694 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 141, 142, 58, 223, 303, RG-55, 400 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-TNC |
| Connector Type | Receptacle, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 3 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Clamp |
| Voltage Rating | 500 V |
