Description
General part information

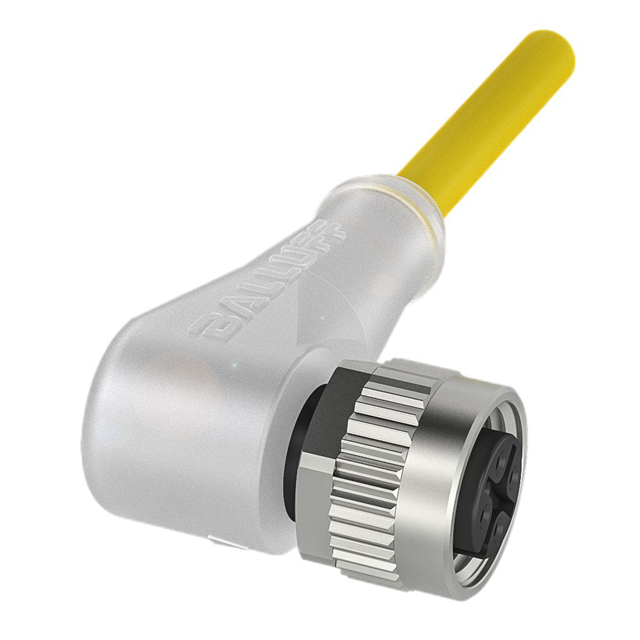

BCC05U4
Circular Cable Assembly Unshielded 49.2' (15.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | BCC05U4 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Right Angle, Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Yellow |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP69K, IP68, IP67 |
| Length | 49.2 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
