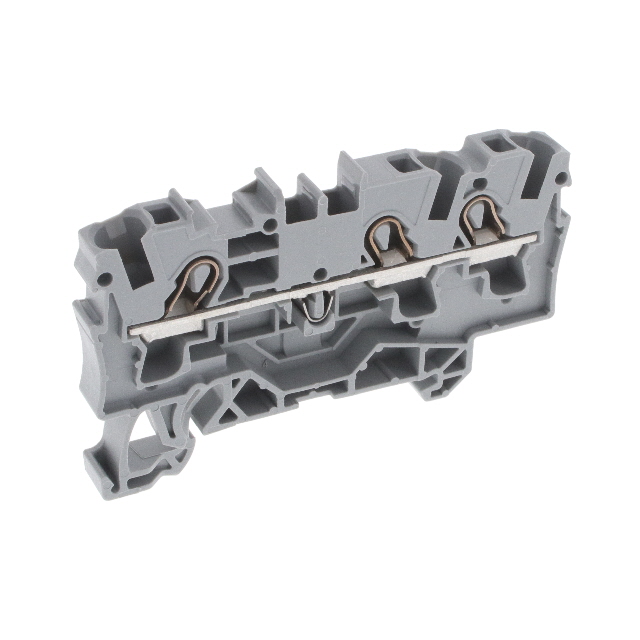

2004-1301

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 10 AWG, 6 MM², CLAMP, 32 A

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 10 AWG, 6 MM², CLAMP, 32 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 3 Position Feed Through Gray 10-14 AWG

Technical documentation and resources

Specification	2004-1301	2004-13 Series

Color	Gray	Gray, Green, Yellow
Current - IEC	41 A	41 A
Current - UL	30 A	30 A
For Use With/Related Products	-	TOPJOB®S Series
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	1	1
Stripping Length [Max]	13 mm	13 mm
Stripping Length [Min]	11 mm	11 mm
Terminal - Width [y]	6.2 mm	6.2 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Feed Through	End Plate, Ground, Earth, Feed Through
Voltage - IEC	800 V	800 V
Voltage - UL	600 V	600 V
Wire Gauge or Range - AWG [Max]	14 AWG	14 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	10 AWG
Wire Gauge or Range - mm² [Max]	6 mm²	6 mm²
Wire Gauge or Range - mm² [Min]	1.5 mm²	1.5 mm²

Part	Type	For Use With/Related Products	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Termination Style	Material - Insulation	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Terminal - Width [y]	Stripping Length [Max]	Stripping Length [Min]	Voltage - UL	Voltage - IEC	Current - IEC	Current - UL
WAGO Corporation 2004-1392	End Plate	TOPJOB®S Series
WAGO Corporation 2004-1391	End Plate	TOPJOB®S Series	Gray
WAGO Corporation 2004-1307	Ground, Earth		Green, Yellow	6 mm²	1.5 mm²	Push In, Spring	Polyamide (PA66), Nylon 6/6	14 AWG	10 AWG	1	6.2 mm	13 mm	11 mm
WAGO Corporation 2004-1301	Feed Through		Gray	6 mm²	1.5 mm²	Push In, Spring	Polyamide (PA66), Nylon 6/6	14 AWG	10 AWG	1	6.2 mm	13 mm	11 mm	600 V	800 V	41 A	30 A
