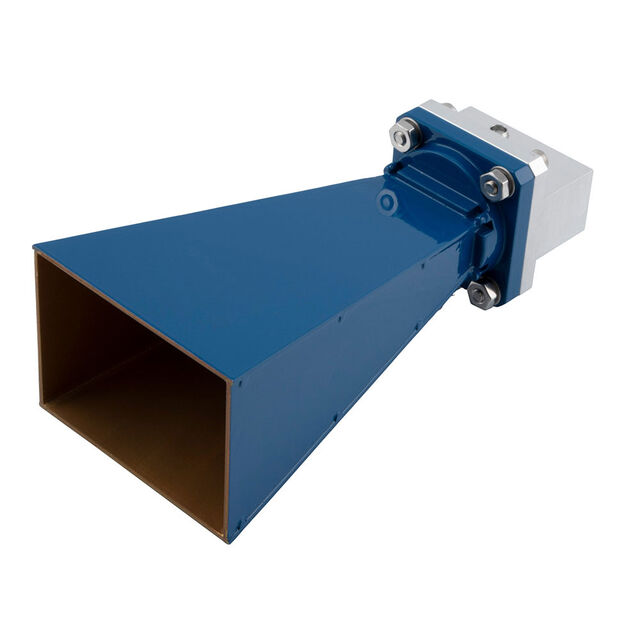

FM9858B/SF-15
ActiveFairview Microwave
WG ANTENNA WG COAX ADAPT WR-112-
FM9858B/SF-15
ActiveFairview Microwave
WG ANTENNA WG COAX ADAPT WR-112-
Description
General part information
FM9858B/SF-15
RF ANTENNA General Purpose Horn SMA Female Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FM9858B/SF-15 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 8.525 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 10 GHz |
| Frequency Range (Min) | 7.05 GHz |
| Gain | 15 dBi |
| Height (Max) | 1.99 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination Type | SMA Female |
| VSWR | 1.3 |
