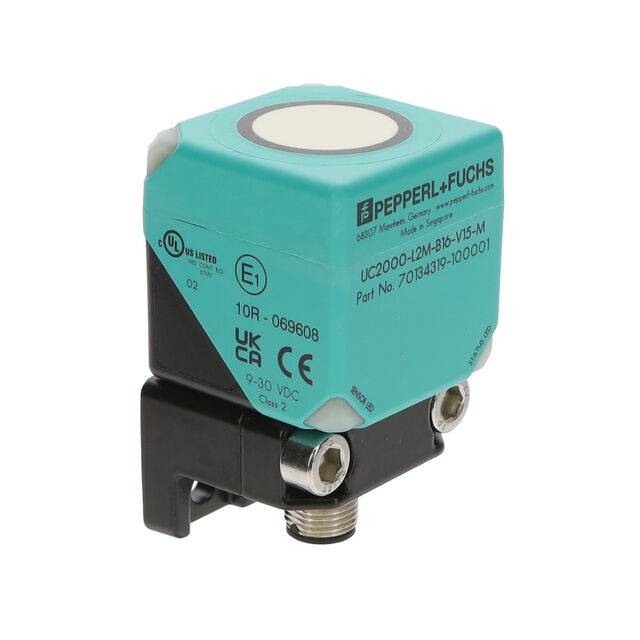

UC2000-L2M-B16-V15-M
ActivePepperl+Fuchs, Inc.
ULTRASONIC SENSOR
UC2000-L2M-B16-V15-M
ActivePepperl+Fuchs, Inc.
ULTRASONIC SENSOR
Description
General part information
UC2000-L2M-B16-V15-M
ULTRASONIC SENSOR
Technical Specifications
Parameters and characteristics for this part
| Specification | UC2000-L2M-B16-V15-M |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68 |
| Material - Body | Polyamide (PA) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Digital |
| Package / Case | Module |
| Sensing Distance Maximum | 78.74 " |
| Sensing Distance Minimum | 3.15 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 9 VDC |
