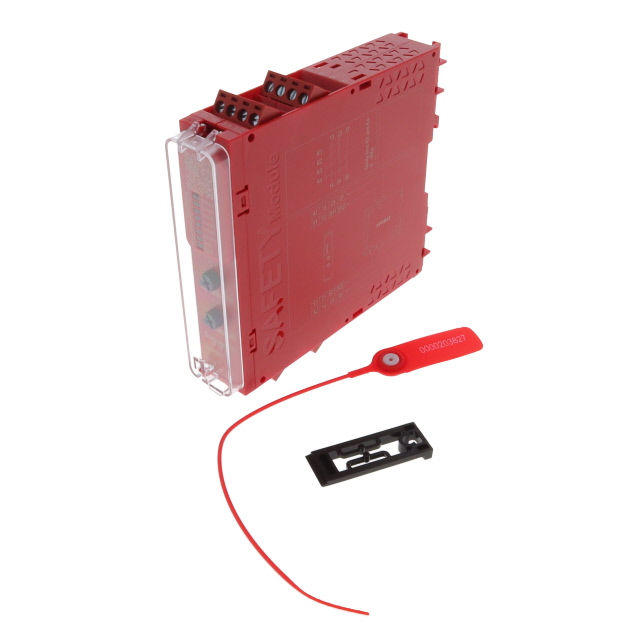

XPSBAT12A1AP
ActiveSAFETY RELAY, 24 VAC/VDC, DPST-NO, SPST-NO, HARMONY XPS SERIES, DIN RAIL, 5 A, SCREW
XPSBAT12A1AP
ActiveSAFETY RELAY, 24 VAC/VDC, DPST-NO, SPST-NO, HARMONY XPS SERIES, DIN RAIL, 5 A, SCREW
Description
General part information
XPSBAT12A1AP
XPSBAT12A1AP is a XPS universal safety module designed to protect industry operators and machines from incidents involving moving machine parts. Harmony XPS Universal range is supporting the integration of machines in digital service and predictive maintenance concepts. This is making Harmony XPS Universal for both OEMs and end users a future proof solution for creation of a single safety function.
Technical Specifications
Parameters and characteristics for this part
| Specification | XPSBAT12A1AP |
|---|---|
| Approval Agency | TUV, cULus |
| Contact Rating (Current) | 5 A |
| Controller Type | General Purpose |
| Ingress Protection | IP20 |
| Input Types | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 2 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Safety Category | PLe, Category 4, SIL3 |
| Safety Output Type | Relay |
| Safety Outputs (Count) | 3 count |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Option 2) | 24 DC |
| Voltage Rating | DC, 24VAC |
| Weight | 0.77 lb |
