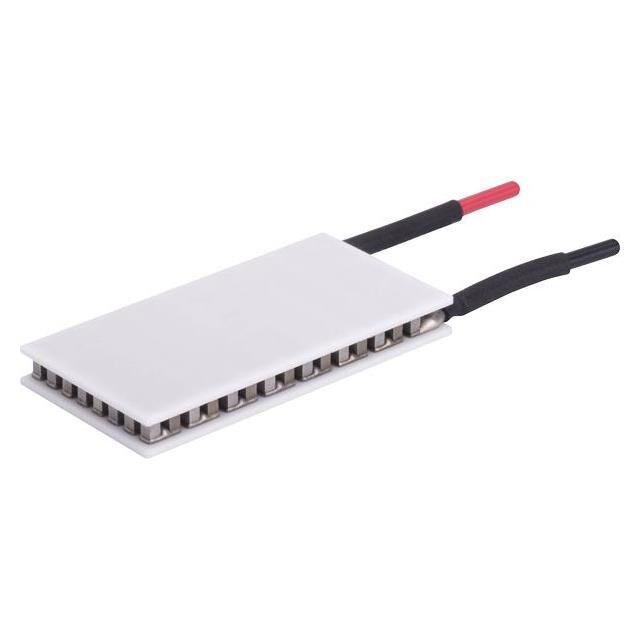

430036-508
ActiveLaird Thermal Systems, Inc.
CP10-63-05-L1-EP-W4.5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
430036-508
ActiveLaird Thermal Systems, Inc.
CP10-63-05-L1-EP-W4.5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 430036-508 |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 3.2 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 16.6 W |
| Resistance | 1.66 Ohms |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [y] | 15 mm |
| Voltage - Max [Max] | 7.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.62 | |
| 5 | $ 24.08 | |||
| 10 | $ 23.45 | |||
| 24 | $ 23.98 | |||
Description
General part information
430036-508
Peltier Module 16.6W @ 25°C 3.9 A 80°C
Documents
Technical documentation and resources
