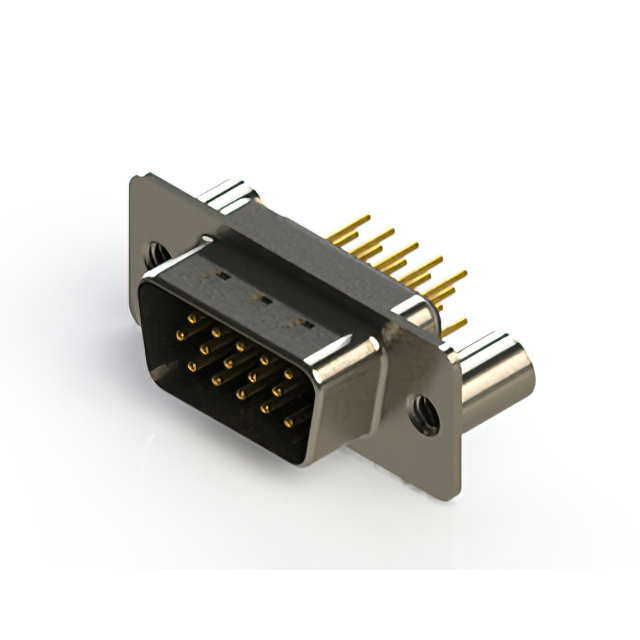

637M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

637-M15-330-BN3

Active

EDAC Inc.

637M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	637-M15-330-BN3

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

637-M15 Series

Part	Current Rating (Amps)	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Contact Finish	Contact Material	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Type	Flange Feature	Features	Shell Material, Finish	Termination	Contact Finish Thickness
EDAC Inc. 637-M15-632-BT4	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Free Hanging (In-Line)	3	0.76 Ám	30 Áin	15	Signal	Housing/Shell (4-40)	Grounding Indents Shielded
EDAC Inc. 637-M15-332-BN4	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Free Hanging (In-Line)	3	0.38 µm	15 µin	15	Signal	Housing/Shell (4-40)	Grounding Indents Shielded	Nickel Plated Steel
EDAC Inc. 637-M15-330-BN3	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Through Hole	3	0.38 µm	15 µin	15	Signal	Housing/Shell (4-40)	Grounding Indents Shielded	Nickel Plated Steel	Solder
EDAC Inc. 637-M15-330-BT4	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Through Hole	3	0.38 µm	15 µin	15	Signal	Housing/Shell (4-40)	Grounding Indents Shielded		Solder
EDAC Inc. 637-M15-332-BT6	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Free Hanging (In-Line)	3	0.38 µm	15 µin	15	Signal	Housing/Shell (4-40)	Board Lock Grounding Indents Shielded
EDAC Inc. 637-M15-232-BN2	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Free Hanging (In-Line)	3			15	Signal	Housing/Shell (4-40)	Grounding Indents Shielded	Nickel Plated Steel		Flash
EDAC Inc. 637-M15-330-BN6	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Through Hole	3	0.38 µm	15 µin	15	Signal	Housing/Shell (4-40)	Board Lock Grounding Indents Shielded	Nickel Plated Steel	Solder
EDAC Inc. 637-M15-332-BN3	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Free Hanging (In-Line)	3	0.38 µm	15 µin	15	Signal	Housing/Shell (4-40)	Grounding Indents Shielded	Nickel Plated Steel
EDAC Inc. 637-M15-232-BT4	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Free Hanging (In-Line)	3			15	Signal	Housing/Shell (4-40)	Grounding Indents Shielded			Flash
EDAC Inc. 637-M15-232-BT1	5 A	D-Sub High Density	-55 °C	125 °C	Black	Male Pins Plug	UL94 V-0	DE E	1	High Density	Polyamide (PA9T) Nylon 9T	Gold	Copper Alloy	Free Hanging (In-Line)	3			15	Signal	Housing/Shell (Unthreaded)	Grounding Indents Shielded			Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 5.18

Description

General part information

637-M15 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
