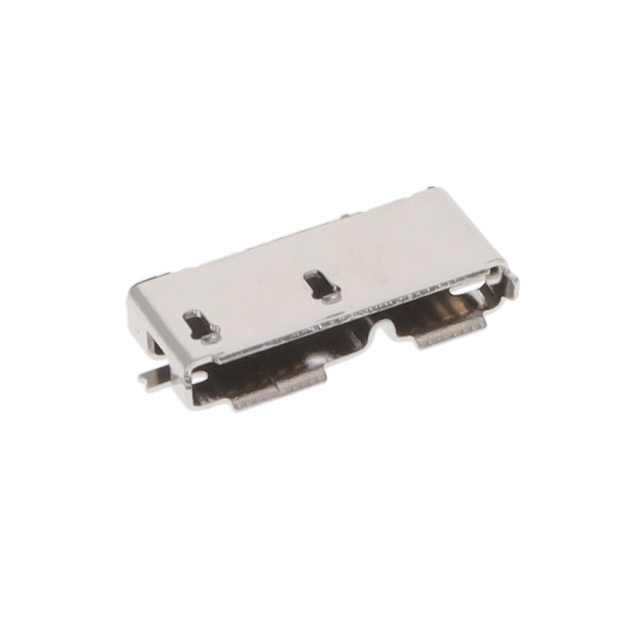

1003-005-23100-TR
ActiveCnC Tech, LLC
USB 3.0 MICRO AB SMD TYPE 15U''
Deep-Dive with AI
Search across all available documentation for this part.
1003-005-23100-TR
ActiveCnC Tech, LLC
USB 3.0 MICRO AB SMD TYPE 15U''
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1003-005-23100-TR | 1003-005 Series |
|---|---|---|
| Connector Type | USB - micro B | USB - micro B, USB - micro AB |
| Contact Finish | Gold | Gold |
| Current Rating (Amps) | 1.8 A, 0.25 A | 0.25 - 1.8 A |
| Features | - | Solder Retention |
| Gender | Receptacle | Receptacle |
| Insulation Color | Black | Black |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Horizontal | Horizontal |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Number of Contacts | 10 | 10 |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shell/Shielding Material | Brass | Brass |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
1003-005 Series
USB 3.0 MICRO B SMD TYPE 15U''
| Part | Contact Finish | Number of Ports | Shell/Shielding Material | Termination | Gender | Mounting Feature | Connector Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shielding | Mounting Type | Number of Contacts | Insulation Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC 1003-005-22100-TR | Gold | 1 | Brass | Solder | Receptacle | Horizontal | USB - micro B | UL94 V-0 | -40 °C | 105 ░C | 0.25 A, 1.8 A | Unshielded | Surface Mount, Right Angle | 10 | Black | |
CnC Tech, LLC 1003-005-23100-TR | Gold | 1 | Brass | Solder | Receptacle | Horizontal | USB - micro B | UL94 V-0 | -40 °C | 105 ░C | 0.25 A, 1.8 A | Unshielded | Surface Mount, Right Angle | 10 | Black | |
CnC Tech, LLC 1003-005-23100 | Gold | 1 | Solder | Receptacle | Horizontal | USB - micro AB | Surface Mount, Right Angle | 10 | Black | Solder Retention | ||||||
CnC Tech, LLC 1003-005-22100 | Gold | 1 | Solder | Receptacle | Horizontal | USB - micro B | Surface Mount, Right Angle | 10 | Black | Solder Retention |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.43 | |
| 10 | $ 2.11 | |||
| 25 | $ 2.02 | |||
| 50 | $ 1.98 | |||
| 100 | $ 1.89 | |||
| 250 | $ 1.71 | |||
| 500 | $ 1.57 | |||
| Digi-Reel® | 1 | $ 2.43 | ||
| 10 | $ 2.11 | |||
| 25 | $ 2.02 | |||
| 50 | $ 1.98 | |||
| 100 | $ 1.89 | |||
| 250 | $ 1.71 | |||
| 500 | $ 1.57 | |||
| Tape & Reel (TR) | 1500 | $ 1.39 | ||
| 3000 | $ 1.34 | |||
| 7500 | $ 1.28 | |||
Description
General part information
1003-005 Series
USB - micro B USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 10 Position Surface Mount, Right Angle
