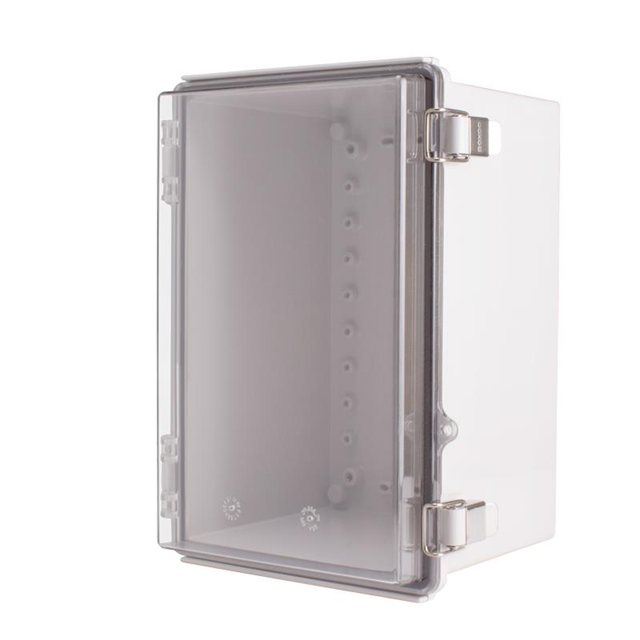

BC-CTP-203018

Active

Boxco

BOX PLAS CLEAR 11.81"L X 7.87"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-CTP-203018

Active

Boxco

BOX PLAS CLEAR 11.81"L X 7.87"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.26

Description

General part information

BC-CTP Series

Box Plastic, Polycarbonate/Fiberglass Light Gray, Clear Cover Hinged Door, Stainless Steel Latch 11.811" L x 7.874" W (300.00mm x 200.00mm) X 7.087" (180.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC-CTP-203018	BC-CTP Series

Area (L x W)	600 cm²	108 - 1575 cm²
Area (L x W)	93 in˛	16.7 - 244 in˛
Color	Light Gray, Clear Cover	Light Gray, Clear Cover
Container Type	Box	Box
Design	Stainless Steel Latch, Hinged Door	Stainless Steel Latch, Hinged Door
Features	Flame Retardant, Hinged, Lockable, Sealing Gasket, Latches	Flame Retardant, Hinged, Lockable, Sealing Gasket, Latches
Height	-	150 mm
Height [z]	180 mm	5.906 - 180 mm
Height [z]	7.087 in	2.756 - 7.087 in
Material	Plastic, Polycarbonate/Fiberglass	Plastic, Polycarbonate/Fiberglass
Material Flammability Rating	UL94 V-0, UL94 5VA, UL94 HB	UL94 V-0, UL94 5VA, UL94 HB
Ratings	NEMA 6, IP66, UL 508A, NEMA 4X, IP67	NEMA 6, IP66, UL 508A, NEMA 4X, IP67
Size / Dimension [x]	300 mm	120 - 450 mm
Size / Dimension [x]	11.811 in	4.724 - 17.717 in
Size / Dimension [y]	200 mm	90 - 350 mm
Size / Dimension [y]	7.874 "	3.543 - 13.78 "
Thickness	-	0.146 in
Thickness	-	3.7 mm

BC-CTP Series

BOX PLAS CLEAR 11.81"L X 7.87"W

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Features	Height [z]	Height [z]	Material Flammability Rating	Design	Area (L x W)	Area (L x W)	Material	Ratings	Color	Thickness	Thickness	Height [z]
Boxco BC-CTP-203018	200 mm	7.874 "	300 mm	11.811 in	Box	Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket	180 mm	7.087 in	UL94 5VA, UL94 HB, UL94 V-0	Hinged Door, Stainless Steel Latch	600 cm²	93 in˛	Plastic, Polycarbonate/Fiberglass	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Clear Cover, Light Gray
Boxco BC-CTP-212110	210 mm	8.268 in	210 mm	8.268 in	Box	Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket	100 mm	3.937 in	UL94 5VA, UL94 HB, UL94 V-0	Hinged Door, Stainless Steel Latch	441 cm˛	68.4 in²	Plastic, Polycarbonate/Fiberglass	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Clear Cover, Light Gray
Boxco BC-CTP-354520	350 mm	13.78 in	450 mm	17.717 in	Box	Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket			UL94 5VA, UL94 HB, UL94 V-0	Hinged Door, Stainless Steel Latch	1575 cm˛	244 in˛	Plastic, Polycarbonate/Fiberglass	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Clear Cover, Light Gray	0.146 in	3.7 mm
Boxco BC-CTP-283813	280 mm	11.024 "	380 mm	14.961 in	Box	Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket	130 mm	5.118 in	UL94 5VA, UL94 HB, UL94 V-0	Hinged Door, Stainless Steel Latch	1064 cm˛	165 in˛	Plastic, Polycarbonate/Fiberglass	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Clear Cover, Light Gray
Boxco BC-CTP-203015	200 mm	7.874 "	300 mm	11.811 in	Box	Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket	5.906 in		UL94 5VA, UL94 HB, UL94 V-0	Hinged Door, Stainless Steel Latch	600 cm²	93 in˛	Plastic, Polycarbonate/Fiberglass	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Clear Cover, Light Gray			150 mm
Boxco BC-CTP-091207	90 mm	3.543 in	120 mm	4.724 "	Box	Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket	70 mm	2.756 "	UL94 5VA, UL94 HB, UL94 V-0	Hinged Door, Stainless Steel Latch	108 cm²	16.7 in²	Plastic, Polycarbonate/Fiberglass	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Clear Cover, Light Gray
