3240307

Active

Phoenix Contact

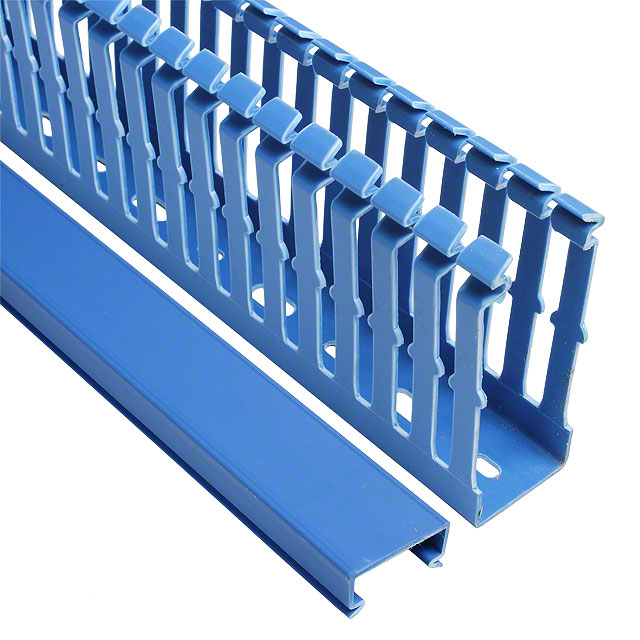

WIRE DUCT SOLID 2PC RIVET 6.56'

Search across all available documentation for this part.

Active

Phoenix Contact

WIRE DUCT SOLID 2PC RIVET 6.56'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240307	CD 30 Series

Color	Blue	Blue, Gray
Features	Separate Snap in Lid (Included)	Separate Snap in Lid (Included)
Height	-	40 - 100 mm
Height	-	1.575 - 3.937 in
Height [diameter]	80 mm	80 mm
Height [diameter]	3.15 in	3.15 in
Length [x]	2 m	2 m
Length [x]	6.56 ft	6.56 ft
Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Mounting Type	Rivet	Rivet
Width	30 mm	30 mm
Width	1.181 in	1.181 in
Wire Duct Type	2 Piece	2 Piece
Wire Duct Type	Solid (Raceway)	Solid (Raceway), Slotted (Raceway)

WIRE DUCT SOLID 2PC RIVET 6.56'

Part	Features	Color	Width	Width	Mounting Type	Length [x]	Length [x]	Height [z]	Height [z]	Material	Wire Duct Type	Wire Duct Type	Height [diameter]	Height [diameter]
Phoenix Contact 3240308	Separate Snap in Lid (Included)	Blue	30 mm	1.181 in	Rivet	2 m	6.56 ft	100 mm	3.937 in	Poly-Vinyl Chloride (PVC)	2 Piece	Solid (Raceway)
Phoenix Contact 3240278	Separate Snap in Lid (Included)	Gray	30 mm	1.181 in	Rivet	2 m	6.56 ft	40 mm	1.575 in	Poly-Vinyl Chloride (PVC)	2 Piece	Slotted (Raceway)
Phoenix Contact 3240307	Separate Snap in Lid (Included)	Blue	30 mm	1.181 in	Rivet	2 m	6.56 ft			Poly-Vinyl Chloride (PVC)	2 Piece	Solid (Raceway)	80 mm	3.15 in
Phoenix Contact 3240306	Separate Snap in Lid (Included)	Blue	30 mm	1.181 in	Rivet	2 m	6.56 ft	60 mm	2.362 in	Poly-Vinyl Chloride (PVC)	2 Piece	Solid (Raceway)
Phoenix Contact 3240280	Separate Snap in Lid (Included)	Gray	30 mm	1.181 in	Rivet	2 m	6.56 ft	60 mm	2.362 in	Poly-Vinyl Chloride (PVC)	2 Piece	Solid (Raceway)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.90

General part information

Wire Duct Blue Solid (Raceway), 2 Piece Rivet 6.56' (2.00m)
