B82144A2336J009
ActiveEPCOS - TDK Electronics
HF-CHOKE LBC 33000,0 UH 5%
B82144A2336J009
ActiveEPCOS - TDK Electronics
HF-CHOKE LBC 33000,0 UH 5%
Description
General part information
B82144A2336J009

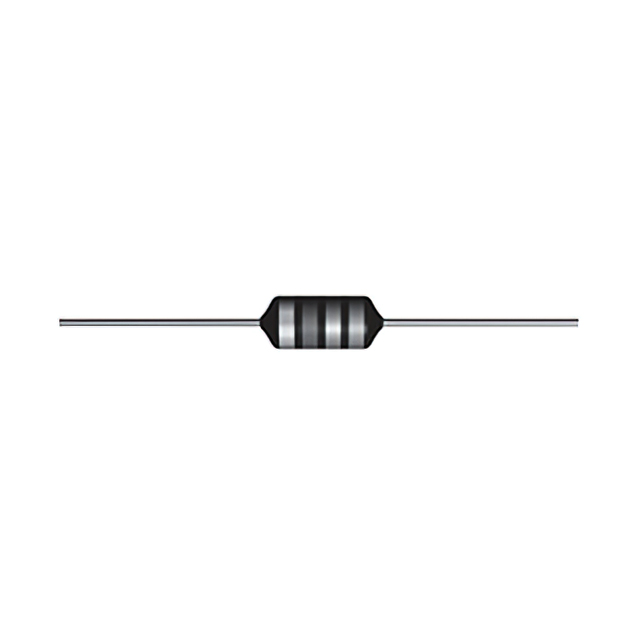

33 mH Unshielded Wirewound Inductor 35 mA 150Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144A2336J009 |
|---|---|
| Current Rating | 0.035 A |
| DC Resistance (DCR) (Max) | 150 Ohm |
| Frequency - Self Resonant | 220 kHz |
| Inductance | 33 mH |
| Inductance Frequency - Test | 79.6 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Q | 50 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.472 in |
| Tolerance | 5 % |
| Type | Wirewound |
