Description
General part information

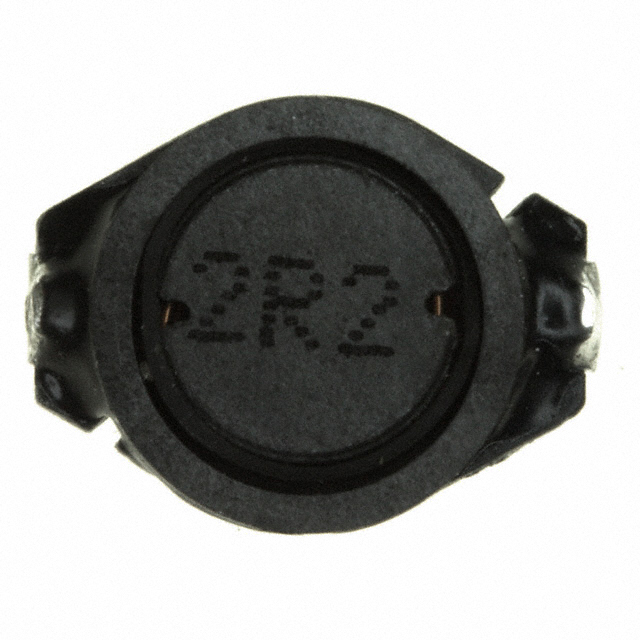

SDS130R-222N
2.2 µH Shielded Drum Core, Wirewound Inductor 3.5 A 45mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SDS130R-222N |
|---|---|
| Current Rating | 3.5 A |
| DC Resistance (DCR) (Max) | 45 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.398 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
