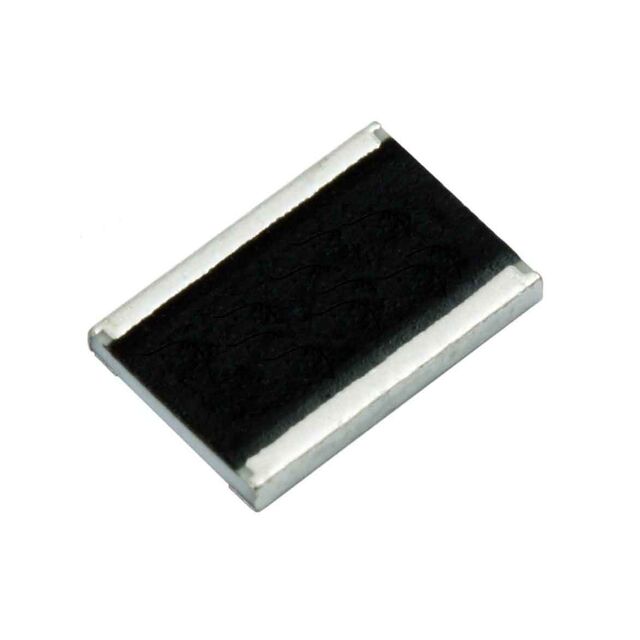

Specification	CRCW121822R6FKEKHP

Composition	Thick Film
Features	Pulse Withstanding, Automotive AEC-Q200
Height - Seated (Max)	0.028 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	1218 (3246 Metric)
Package Name	1218
Power (Watts)	1.5 W
Ratings	AEC-Q200
Resistance	22.6 Ohm
Size / Dimension Length	0.122 in
Size / Dimension Width	0.181 in
Supplier Device Package	1218
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

CRCW1218 Series

...

Part	Ratings	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Temperature Coefficient	Tolerance	Power (Watts)	Composition	Number of Terminations	Package Name	Supplier Device Package	Features	Size / Dimension Length	Size / Dimension Width	Resistance
Vishay Dale CRCW12182R40JNTK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	200 ppm/°C	5 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	2.4 Ohm
Vishay Dale CRCW121856R2FKTK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	100 ppm/°C	1 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	56.2 Ohm
Vishay Dale CRCW1218348RFKEK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	100 ppm/°C	1 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	348 Ohm
Vishay Dale CRCW121816K0JNEK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	200 ppm/°C	5 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	16 kOhm
Vishay Dale CRCW12188K66FKTK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	100 ppm/°C	1 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	8.66 kOhm
Vishay Dale CRCW12184K30FKEK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	100 ppm/°C	1 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	4.3 kOhm
Vishay Dale CRCW1218332KFKEK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	100 ppm/°C	1 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	332 kOhm
Vishay Dale CRCW12181R05FKTK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	100 ppm/°C	1 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	1.05 Ohms
Vishay Dale CRCW121815K4FKEK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	100 ppm/°C	1 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	15.4 kOhm
Vishay Dale CRCW12181R78FNEK	AEC-Q200	1218 (3246 Metric)	155 °C	-55 °C	0.024 in	200 ppm/°C	1 %	1 W	Thick Film	2	1218	1218	Automotive AEC-Q200	0.122 in	0.181 in	1.78 Ohms
