WAU200-600-G
ActiveTriad Magnetics
AC/AC WALL MNT ADPT 20VAC 600MA
WAU200-600-G
ActiveTriad Magnetics
AC/AC WALL MNT ADPT 20VAC 600MA
Description
General part information
WAU200-600-G

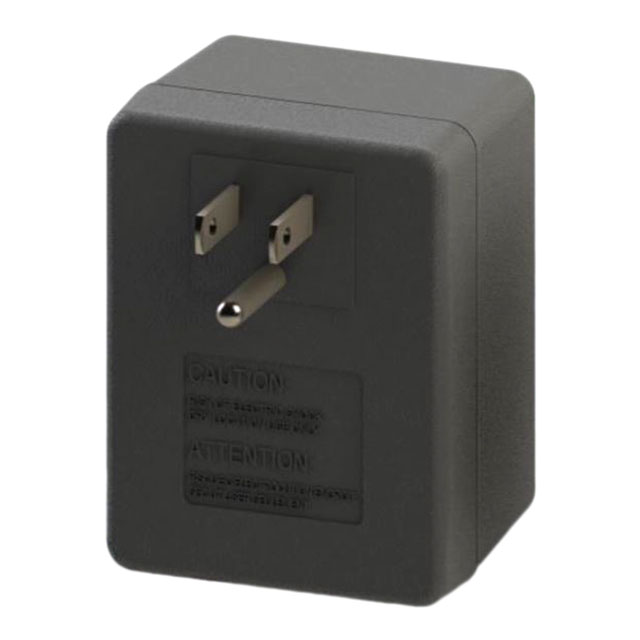

20VAC 600mA AC/AC External Wall Mount Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | WAU200-600-G |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus |
| Cord Length | 72 in |
| Current - Output (Max) | 600 mA |
| Efficiency | Level VI |
| Form | Wall Mount |
| Input Connector | NEMA 5-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption (Max) | 210 mW |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Output Connector | Rectangular |
| Output Connector Position | 3 Position |
| Power (Watts) | 12 W |
| Region Utilized | North America |
| Size / Dimension Height | 3.15 in |
| Size / Dimension Length | 1.89 in |
| Size / Dimension Width | 2.36 in |
| Voltage - Input | 120 VAC |
| Voltage - Output | 20 V |
