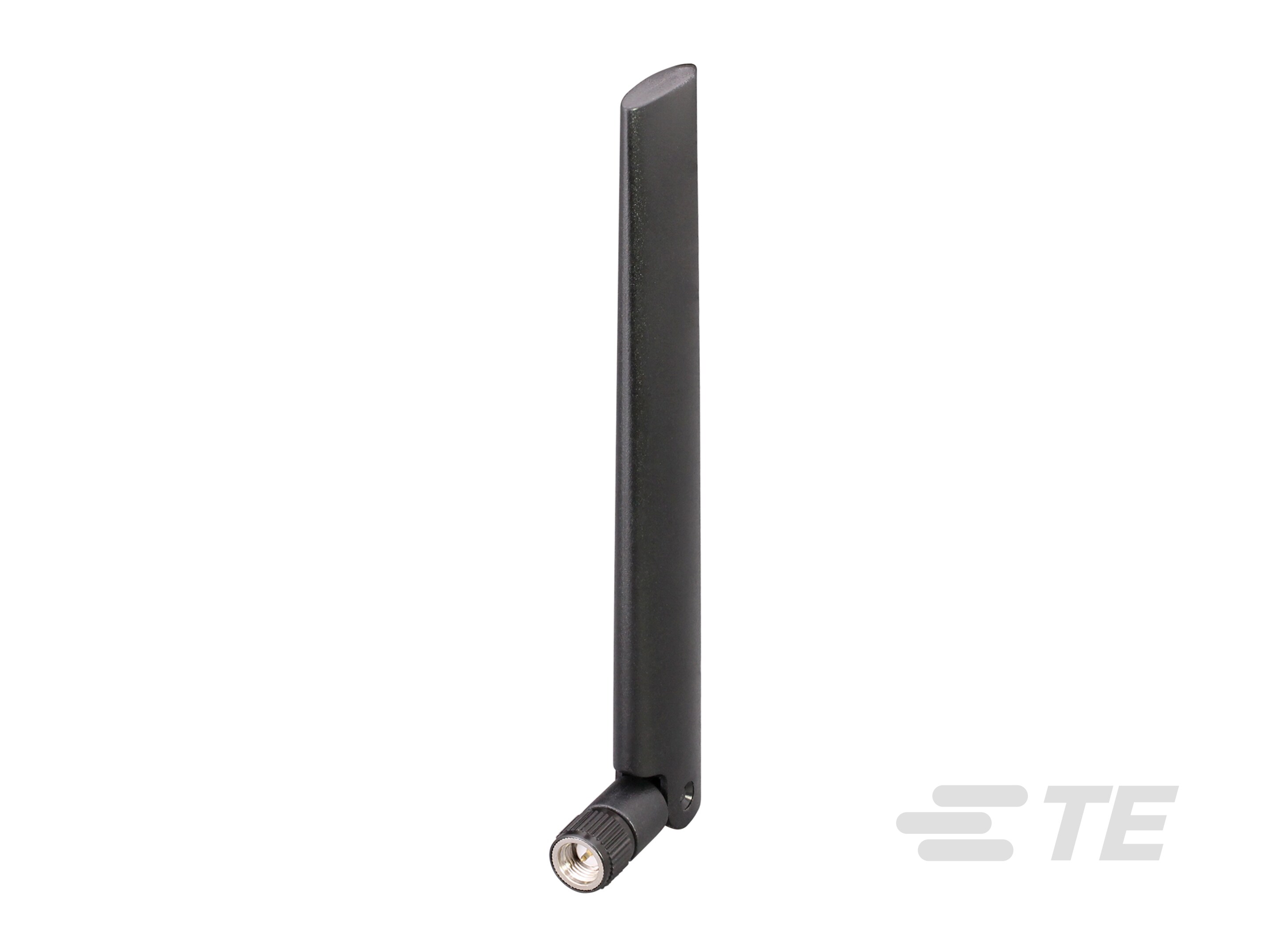

Antenna Blade Wifi6/6E Swivel SMA-ANT-W63WS2-SMA

ANT-W63WS2-SMA

Active
TE Connectivity AMP Connectors

ANTENNA BLADE WIFI6/6E SWIVEL SMA

Find alt
Antenna Blade Wifi6/6E Swivel SMA-ANT-W63WS2-SMA

ANT-W63WS2-SMA

Active
TE Connectivity AMP Connectors

ANTENNA BLADE WIFI6/6E SWIVEL SMA

Find alt

Description

General part information

ANT-W63WS2-SMA

Terminal/Duck Antenna, Triple Band, Wi-Fi, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-W63WS2-SMA
Antenna TypeTilt, Blade
ApplicationsWi-Fi, ISM
Frequency (Center/Band)5.5GHz, 6.525GHz, 2.4425GHz
Frequency (Center/Band) - 12.4425 GHz
Frequency (Center/Band) - 25.5 GHz
Frequency (Center/Band) - 36.525 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum2.485 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.85 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Frequency Range (Band 3) Maximum7.125 GHz
Frequency Range (Band 3) Minimum5.925 GHz
Gain4.7dBi, 4.8dBi, 2.1dBi
Gain2.1 dBi, 4.8 dBi, 4.7 dBi
Height (Max)5.256 in
Mounting TypeConnector Mount
Number of Bands3
Power - Max30 W
RF Family/StandardWiFi
Termination TypeSMA Male
VSWR1.5
