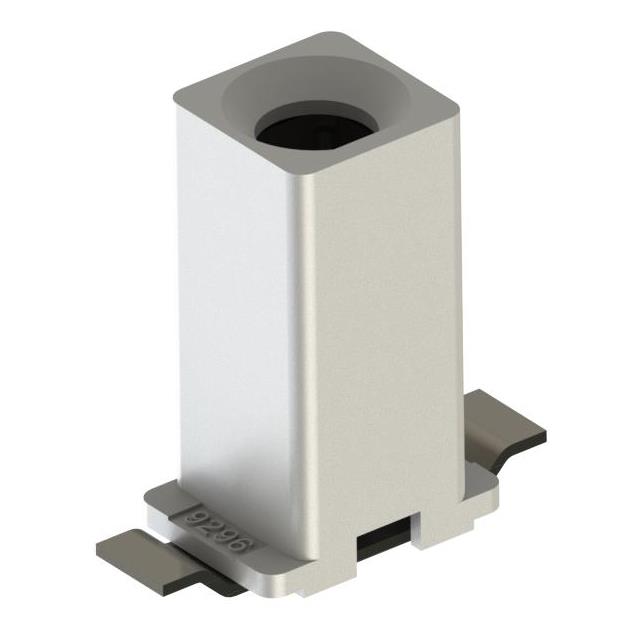

009296001503906
ActiveKYOCERA AVX
CONN WIR POKE-IN 1P 18-26AWG SMD
009296001503906
ActiveKYOCERA AVX
CONN WIR POKE-IN 1P 18-26AWG SMD
Description
General part information
009296 Series
1 Position Individual Wires Connector White Poke-In 18-26 AWG Surface Mount, Through Board
Technical Specifications
Parameters and characteristics for this part
| Specification | 009296001503906 |
|---|---|
| Cable Termination | Poke-In |
| Color | White |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Mounting Type | Through Board, Surface Mount |
| Number of Positions | 1 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
