284229-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 40POS 2.54MM
284229-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 40POS 2.54MM
Description
General part information
284229-1

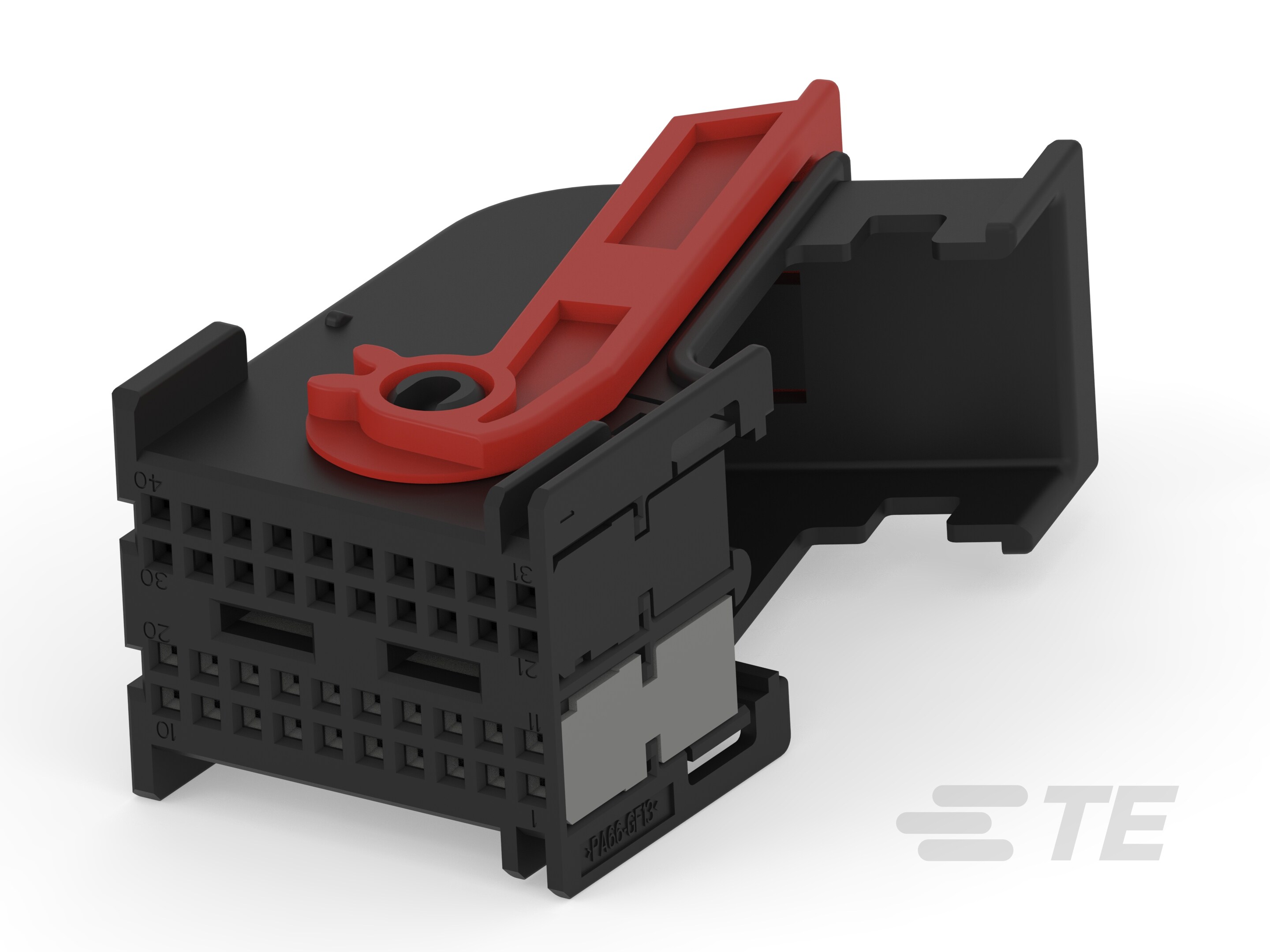

40 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Wire, 2.54 mm [.1 in] Centerline, Blue, Wire & Cable, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 284229-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Columns) | 20 |
| Number of Positions (Rows) | 2 |
| Number of Positions (Total) | 40 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
