LCCA30433-FT6
ActivePasternack
SMA F TO TNC FBH USING LC141TB,
LCCA30433-FT6
ActivePasternack
SMA F TO TNC FBH USING LC141TB,
Description
General part information
LCCA30433-FT6

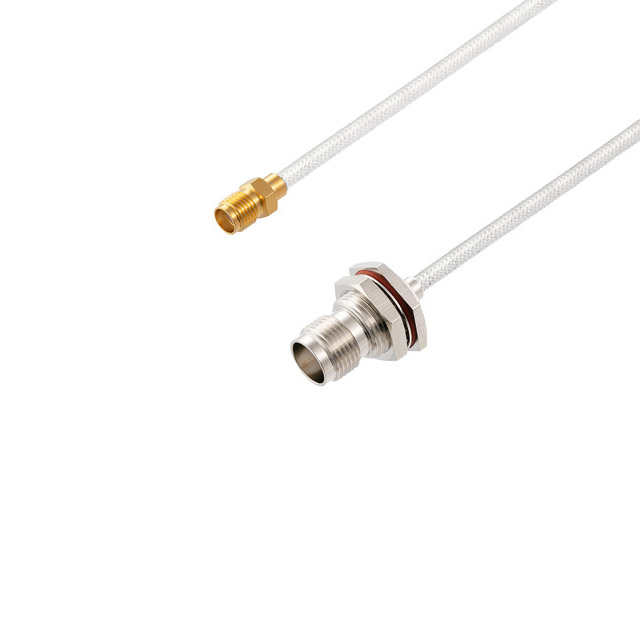

Cable Assembly Coaxial SMA to TNC LC141TB 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30433-FT6 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC141TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 72 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
