Description
General part information
EVALBDPSDDTOLGTOBO1

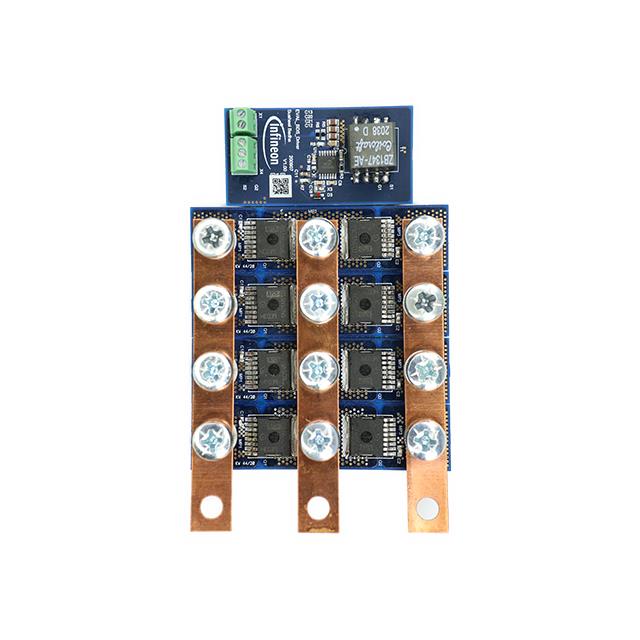

This kit evaluation board for bidirectional battery disconnection is usingTOLG power MOSFETIPTG014N10NM5andBAS3010B. Bidirectional back-to-back MOSFET protection boards are used as static relays. Allowing safe and reliable bidirectional connection or disconnection of a circuit board. Typical functions of bidirectional disconnect boards are: Hotswap and in-rush turn on current control, reverse polarity protection, eFuse and short circuit protection, turn on and off of a power source. The modular Back-to-Back board can be placed on the high or low side of the power bus. Additionally, the board is stackable, allowing for high parallelization count ofTOLG MOSFETs.
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALBDPSDDTOLGTOBO1 |
|---|---|
| Contents | Board |
| Embedded | Yes, MCU |
| Function | MOSFET |
| Primary Attributes | 36V ~ 75V Operating Voltage |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | BAS3010B, IPTG014N10NM5 |
| Voltage (Max) | 75 V |
| Voltage (Min) | 36 V |
