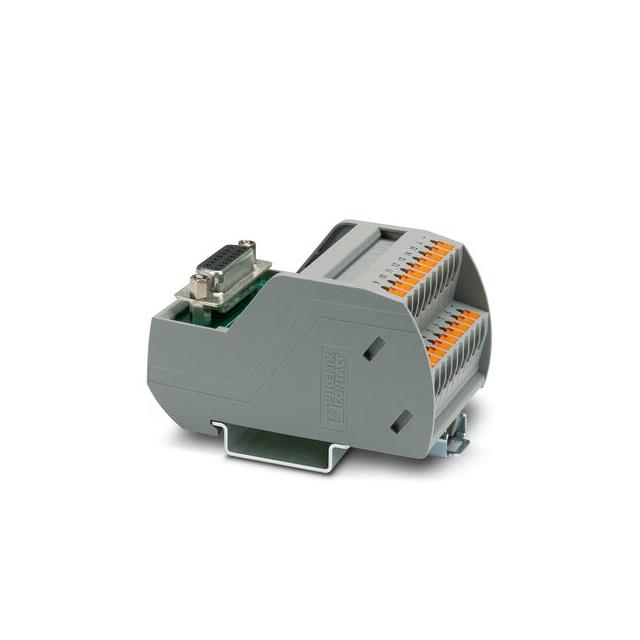

Specification	2904264

Control Side Cable Retainer Type	Jackscrew Socket
Control Side Connection Gender	Female
Control Side Connection Shape	D-Sub
Current Rating (Per Contact)	2 A
Features	LED
Length	2.047 in
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Positions / Poles	15
Process Side Connection	Terminal Blocks, Spring Connection
Voltage - Rated	24 VAC
Width	2.839 in
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	14 AWG
