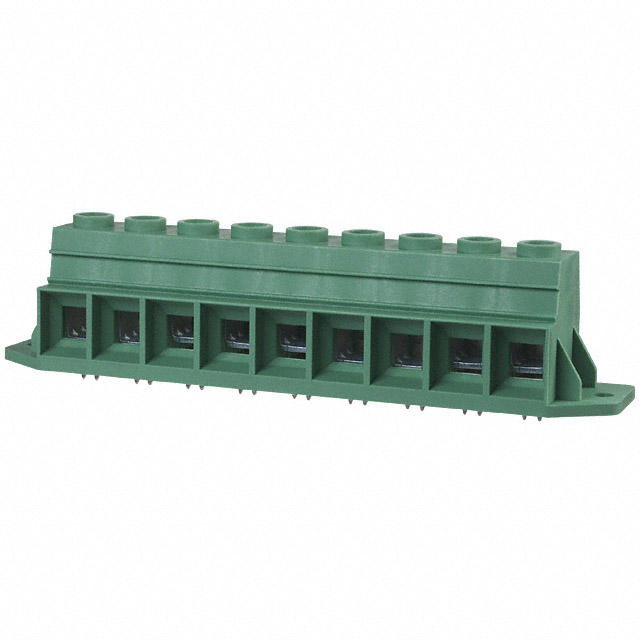

1932562
ActivePhoenix Contact
TERM BLK 9P SIDE ENTRY 15MM PCB
1932562
ActivePhoenix Contact
TERM BLK 9P SIDE ENTRY 15MM PCB
Description
General part information
1932562
9 Position Wire to Board Terminal Block Horizontal with Board 0.591" (15.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1932562 |
|---|---|
| Color | Green |
| Current | 115 A |
| Features | Flange (Mounting) |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.591 in |
| Positions Per Level | 9 |
| Screw Thread | M5 |
| Torque - Screw (Maximum) | 4.5 Nm |
| Torque - Screw (Minimum) | 2.5 Nm |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 2 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
