XUK2AKSNM12T
ActiveSCHNEIDER ELECTRIC

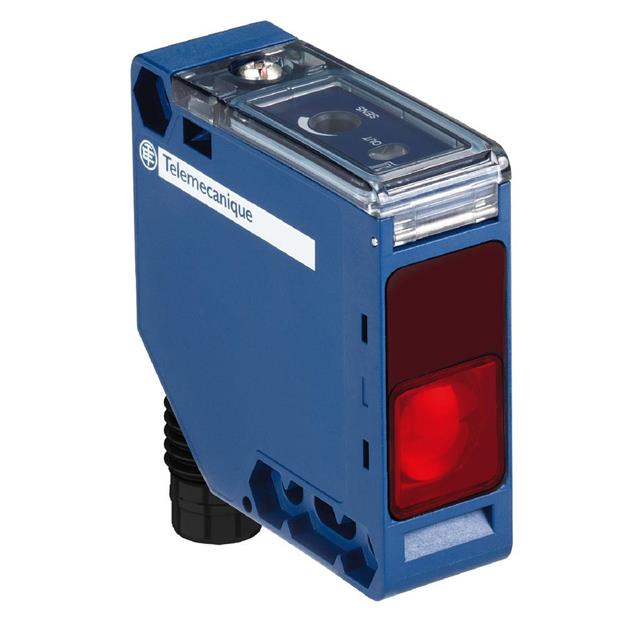

PHOTOELECTRIC SENSOR, XUK SERIES, OSIRIS, THROUGH-BEAM, 30M, SOLID STATE, 12-24V, M12 CONNECTOR
XUK2AKSNM12T
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, XUK SERIES, OSIRIS, THROUGH-BEAM, 30M, SOLID STATE, 12-24V, M12 CONNECTOR
Description
General part information
XUK2AKSNM12T
Through-Beam Optical Sensor 98.43' (30m) SCR, NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XUK2AKSNM12T |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP65 |
| Light Source | Green LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NO, SCR |
| Response Time | 2 ms |
| Sensing Distance | 98.43 ' |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
