TCTPL0J476M8R
ActiveKYOCERA AVX
CAP TANT 47UF 20% 6.3V 0805
TCTPL0J476M8R
ActiveKYOCERA AVX
CAP TANT 47UF 20% 6.3V 0805
Description
General part information
TCTPL0J476M8R

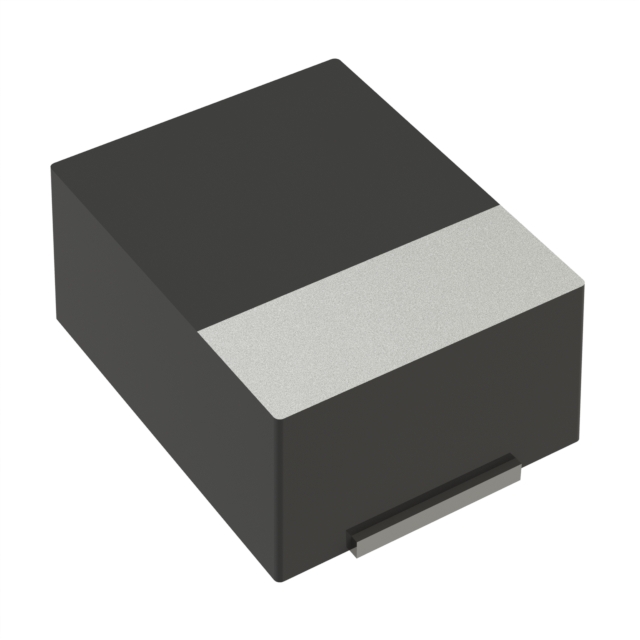

47 µF Molded Tantalum Capacitors 6.3 V 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TCTPL0J476M8R |
|---|---|
| Capacitance | 47 µF |
| Features | General Purpose |
| Height - Seated (Max) | 0.039 in |
| Manufacturer Size Code | PL |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
