FMCA2892-200CM
ActiveFairview Microwave
CBL ASSY BNCPLUG-BNCPLUG 78.7402
FMCA2892-200CM
ActiveFairview Microwave
CBL ASSY BNCPLUG-BNCPLUG 78.7402
Description
General part information
FMCA2892-200CM

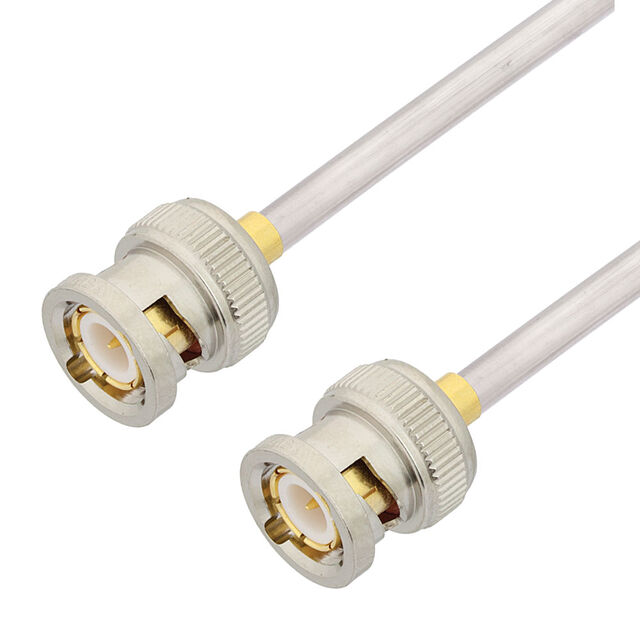

Cable Assembly Coaxial BNC to BNC Hand Formable .141 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2892-200CM |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 4 GHz |
| Length (ft) | 6.6 ft |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC |
