Description
General part information

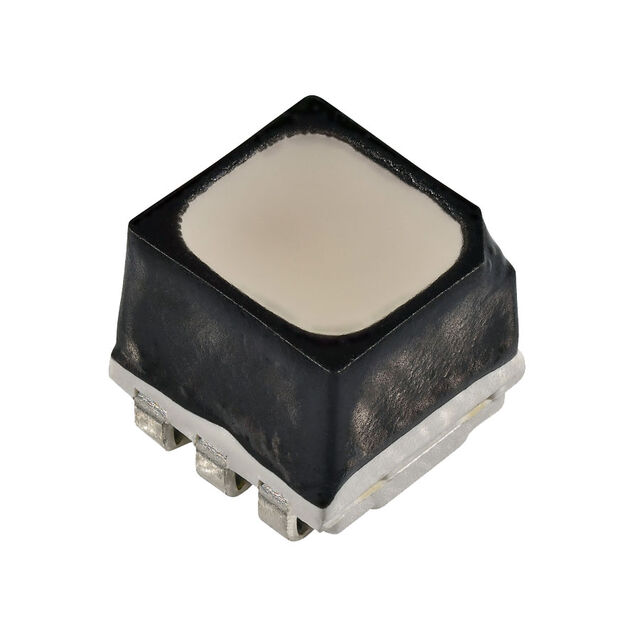

CLX6E-FKC-CHQRMPDGBB79363
Red, Green, Blue (RGB) 622nm Red, 528nm Green, 470nm Blue LED Indication - Discrete 2V Red, 2.7V Green, 2.7V Blue 6-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CLX6E-FKC-CHQRMPDGBB79363 |
|---|---|
| Color | Blue (RGB), Green, Red |
| Configuration | Independent |
| Current - Test (Blue) | 10 mA |
| Current - Test (Green) | 10 mA |
| Current - Test (Red) | 15 mA |
| Current - Test Colors | Green, Red, Blue |
| Features | IPx7, IPx8 |
| Height (Max) | 2.9 mm |
| Lens Color | White |
| Lens Style | Flat Top, Oval, Square |
| Lens Transparency | Diffused |
| Millicandela Rating (Blue) | 247.5 mcd |
| Millicandela Rating (Green) | 1055 mcd |
| Millicandela Rating (Red) | 682.5 mcd |
| Millicandela Rating Colors | Red, Blue, Green |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Package Name | 6-PLCC |
| Size / Dimension Length | 3.4 mm |
| Size / Dimension Width | 3.4 mm |
| Voltage - Forward (Vf) (Typ) (Blue) | 2.7 V |
| Voltage - Forward (Vf) (Typ) (Green) | 2.7 V |
| Voltage - Forward (Vf) (Typ) (Red) | 2 V |
| Voltage - Forward (Vf) (Typ) Color | Blue, Green, Red |
| Wavelength - Dominant (Blue) | 470 nm |
| Wavelength - Dominant (Green) | 528 nm |
| Wavelength - Dominant (Red) | 622 nm |
| Wavelength - Dominant Color | Green, Red, Blue |
