TBL-0016-1000-01GR-2OR
ActiveSame Sky (Formerly CUI Devices)

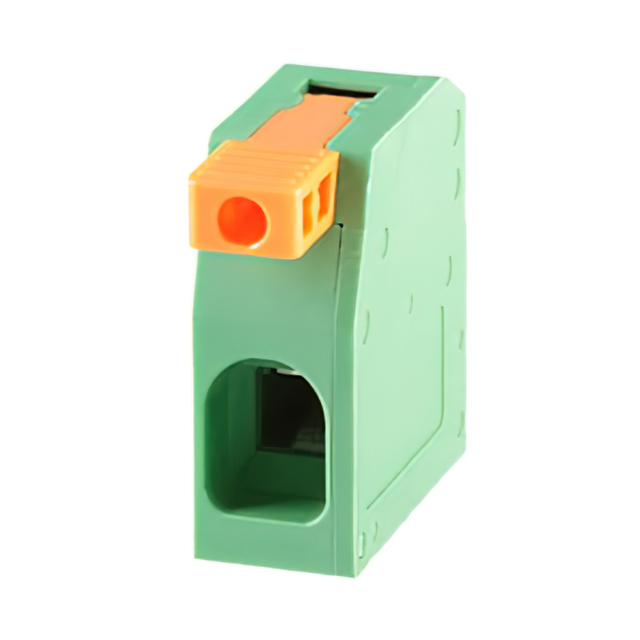

TERMINAL BLOCK, 1-6 POLES,GREEN
TBL-0016-1000-01GR-2OR
ActiveSame Sky (Formerly CUI Devices)
TERMINAL BLOCK, 1-6 POLES,GREEN
Description
General part information
TBL-0016-1000-01GR-2OR
1 Position Wire to Board Terminal Block Horizontal with Board Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | TBL-0016-1000-01GR-2OR |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Current | 51 A |
| Features | Lever Actuated |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Plating | Tin Plated |
| Positions Per Level | 1 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 4 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
