BC54-10PASX
ActiveNXP USA Inc.
NOW NEXPERIA BC54-10PASX - SMALL
BC54-10PASX
ActiveNXP USA Inc.
NOW NEXPERIA BC54-10PASX - SMALL
Description
General part information
BC54-10PASX

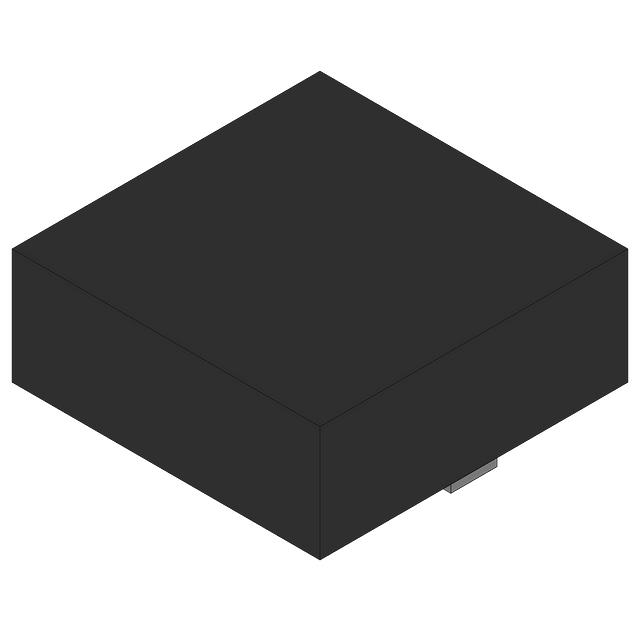

Bipolar (BJT) Transistor NPN 45 V 1 A 180MHz 420 mW Surface Mount DFN2020D-3
Technical Specifications
Parameters and characteristics for this part
| Specification | BC54-10PASX |
|---|---|
| Current - Collector (Ic) (Max) | 1 A |
| Current - Collector Cutoff (Max) | 100 nA |
| DC Current Gain (hFE) (Min) | 63 |
| Frequency - Transition | 180 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | 3-UDFN Exposed Pad |
| Package Name | DFN2020D-3 |
| Power - Max | 420 mW |
| Transistor Type | NPN |
| Vce Saturation (Max) | 500 mV |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
