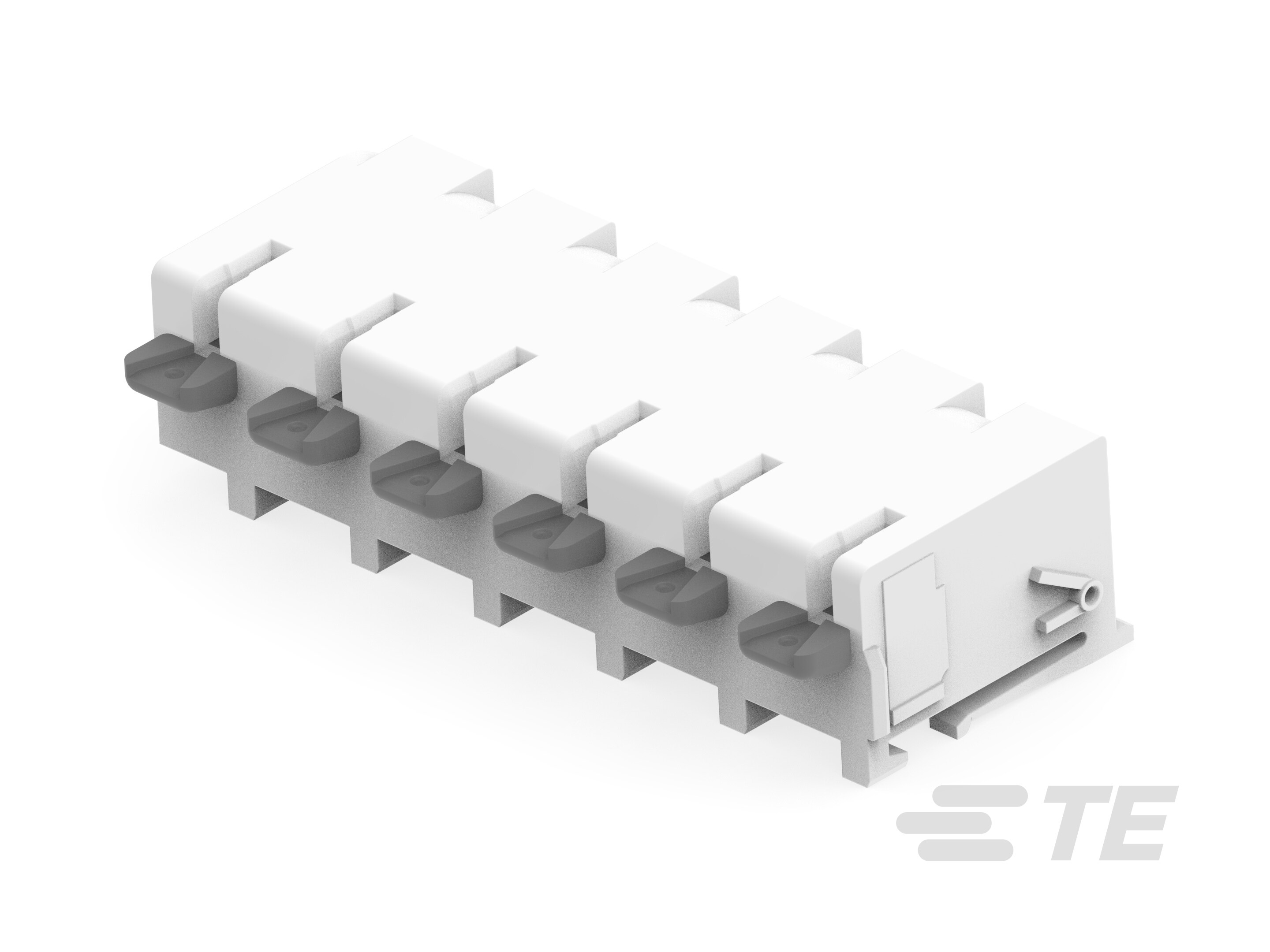

Specification	2318582-6

Color	Natural
Contact Mating Finish	Tin
Features	Lever Actuated
Mounting Type	Panel Mount, Snap-In
Number of Levels	1
Number of Positions	6
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.315 in
Plug Wire Entry Angle	180 °
Positions Per Level	6
Termination Style	Screwless
Type	Plug, Blade Sockets
Voltage - UL	250 V
Wire Gauge or Range - AWG (Max)	24 AWG
Wire Gauge or Range - AWG (Min)	18 AWG
Wire Gauge or Range - mm² (Maximum)	0.82 mm²
Wire Gauge or Range - mm² (Minimum)	0.2 mm²

BUCHANAN WireMate Two-Piece Poke-In Series Series

Part	Color	Features	Number of Positions	Pitch	Positions Per Level	Mounting Type	Type	Termination Style	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Contact Mating Finish	Header Orientation Angle	Header Orientation	Number of Levels	Plug Wire Entry Angle	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Housing Material	Material Flammability Rating	Insulation Height	Contact Material	Wire Strip Length
TE Connectivity AMP Connectors 2318136-5	Natural	Board Guide	5	0.315 in	5	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1
TE Connectivity AMP Connectors 2318582-8	Natural	Lever Actuated	8	0.315 in	8	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG
TE Connectivity AMP Connectors 2318770-7	Natural	Board Guide	7	0.197 in	7	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1
TE Connectivity AMP Connectors 2318582-7	Natural	Lever Actuated	7	0.315 in	7	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG
TE Connectivity AMP Connectors 2318136-6	Natural	Board Guide	6	0.315 in	6	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1						Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.252 in	Copper Alloy
TE Connectivity AMP Connectors 2319461-6	Natural	Lever Actuated	6	0.197 in	6	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	0.669 in	Copper Alloy	10 mm
TE Connectivity AMP Connectors 2319461-4	Natural	Lever Actuated	4	0.197 in	4	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	0.669 in	Copper Alloy	10 mm
TE Connectivity AMP Connectors 2319461-2	Natural	Lever Actuated	2	0.197 in	2	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	0.669 in	Copper Alloy	10 mm
TE Connectivity AMP Connectors 2318770-4	Natural	Board Guide	4	0.197 in	4	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1						Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.252 in	Copper Alloy
TE Connectivity AMP Connectors 2318136-2	Natural	Board Guide	2	0.315 in	2	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1
