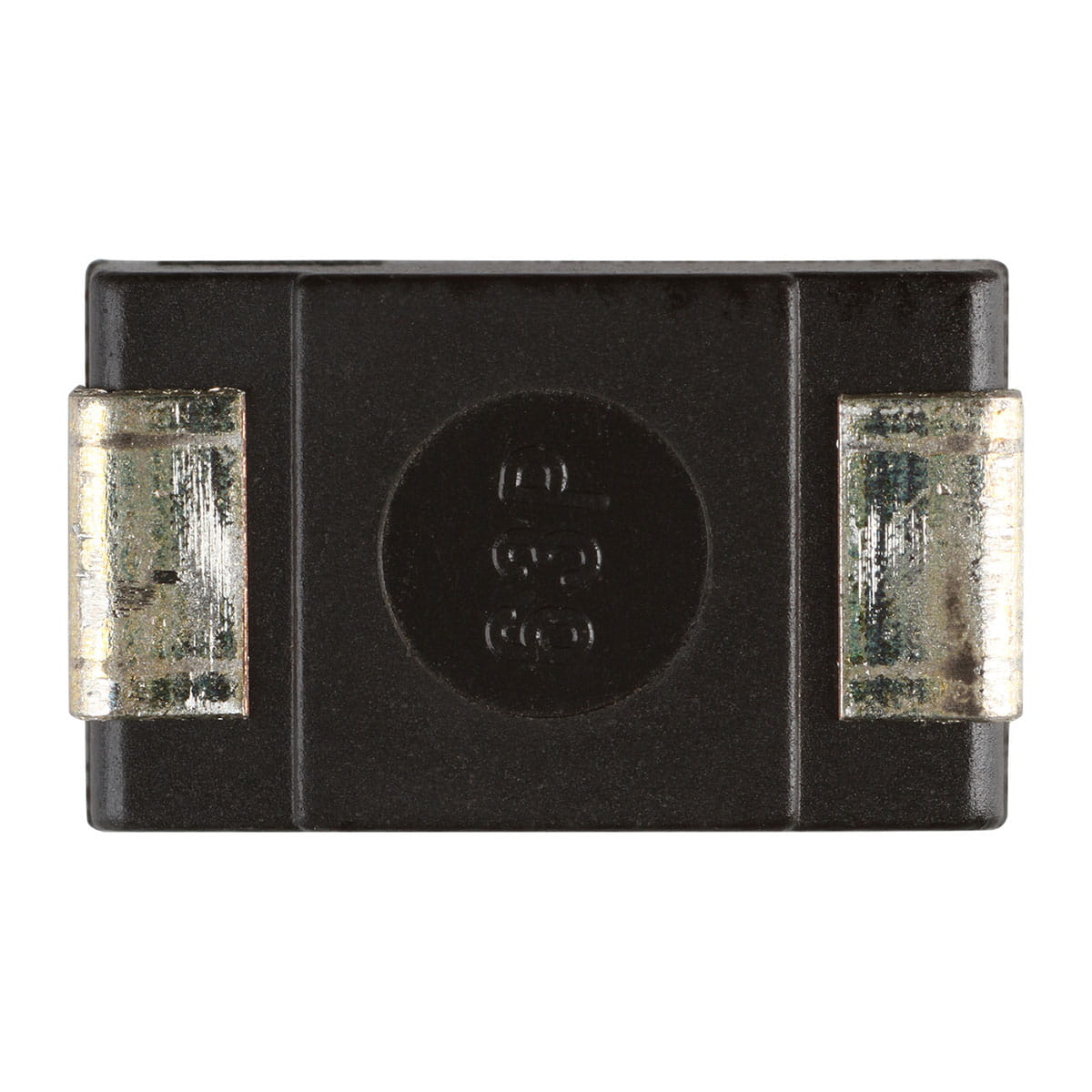

EEF-SX0E221E7
ActivePanasonic Electronic Components
CAP ALUMINUM POLYMER 220UF 2.5VDC 20%( 7.3 X 4.3 X 1.9MM) SMD 0.007 OHM 7A 2000H 105°C T/R
EEF-SX0E221E7
ActivePanasonic Electronic Components
CAP ALUMINUM POLYMER 220UF 2.5VDC 20%( 7.3 X 4.3 X 1.9MM) SMD 0.007 OHM 7A 2000H 105°C T/R
Description
General part information
EEF-SX0E221E7
CAP ALUMINUM POLYMER 220UF 2.5VDC 20%( 7.3 X 4.3 X 1.9MM) SMD 0.007 OHM 7A 2000H 105°C T/R
Technical Specifications
Parameters and characteristics for this part
| Specification | EEF-SX0E221E7 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 7 mOhm |
| Height - Seated (Max) | 0.079 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Ripple Current | 7 A |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Surface Mount Land Length | 0.287 in |
| Surface Mount Land Width | 0.169 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 2.5 V |
