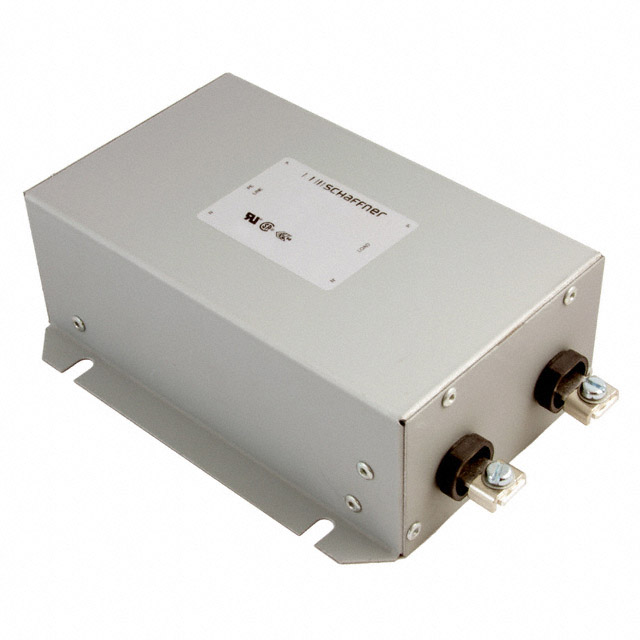

FN686-36-23
ObsoleteTE Connectivity AMP Connectors
LINE FILTER 250VAC 36A CHASS MNT
FN686-36-23
ObsoleteTE Connectivity AMP Connectors
LINE FILTER 250VAC 36A CHASS MNT
Description
General part information
FN686-36-23
Single Phase EMC/EMI Line Filter 36 A 250V DC ~ 400Hz Two Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | FN686-36-23 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Two Stage |
| Current | 36 A |
| Filter Type | Single Phase |
| Frequency - Operating (Max) | 400 Hz |
| Frequency - Operating (Min) | 0 Hz |
| Inductance | 800 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 250 V |
