Description
General part information

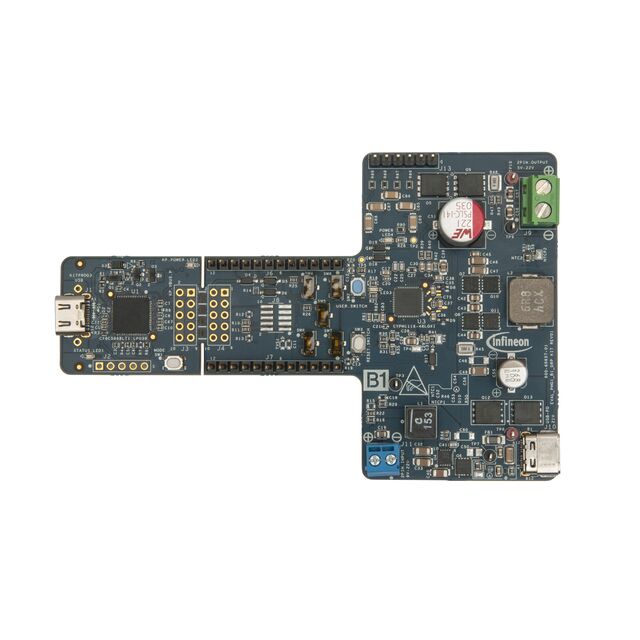

EVALPMG1B1DRPTOBO1
EVAL_PMG1_B1_DRP is an evaluation kit forEZ-PD™ PMG1-B1USB power delivery (PD) microcontroller (MCU) with an integrated buck-boost battery charger. EZ-PD™ PMG1-B1 is targeted for battery-powered applications that are powered byUSB-C PD. The kit is used to sink up to 100 W and source up to 27 W. The kit can also be used to charge 2 cell-5 cell batteries, and the battery charging algorithm is implemented as part of EZ-PD™ PMG1-B1 SDK.
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALPMG1B1DRPTOBO1 |
|---|---|
| Contents | Board |
| Embedded | Yes, MCU |
| Function | USB Type-C Power Delivery (PD) |
| Primary Attributes - Input Voltage (Max) | 24 V |
| Primary Attributes - Input Voltage (Min) | 3.3 V |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | PMG1-B1 |
