1376383-6
ActiveTE Connectivity AMP Connectors

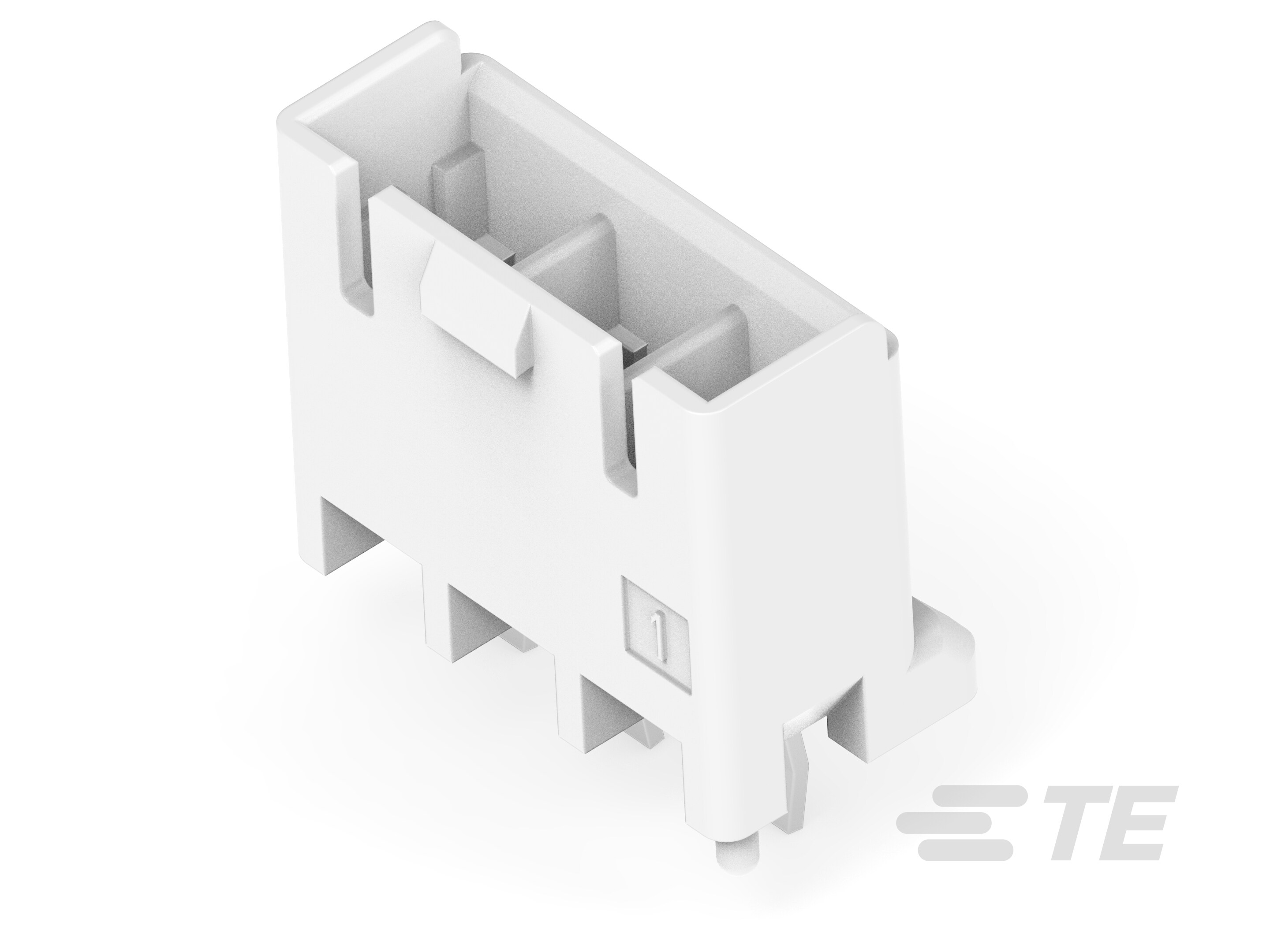

5.0 PK CONN 3P HDR ASSY HIGH CURRENT
1376383-6
ActiveTE Connectivity AMP Connectors
5.0 PK CONN 3P HDR ASSY HIGH CURRENT
Description
General part information
1376383-6
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, 5 mm [.197 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Power Key 5.0
Technical Specifications
Parameters and characteristics for this part
| Specification | 1376383-6 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.138 in |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating | 10 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.555 in |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.197 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 300 VAC/DC |
