TYS4012470M-10
ActiveLaird Technologies EMI
FIXED IND 47UH 370MA 1.1 OHM SMD
TYS4012470M-10
ActiveLaird Technologies EMI
FIXED IND 47UH 370MA 1.1 OHM SMD
Description
General part information
TYS4012470M-10

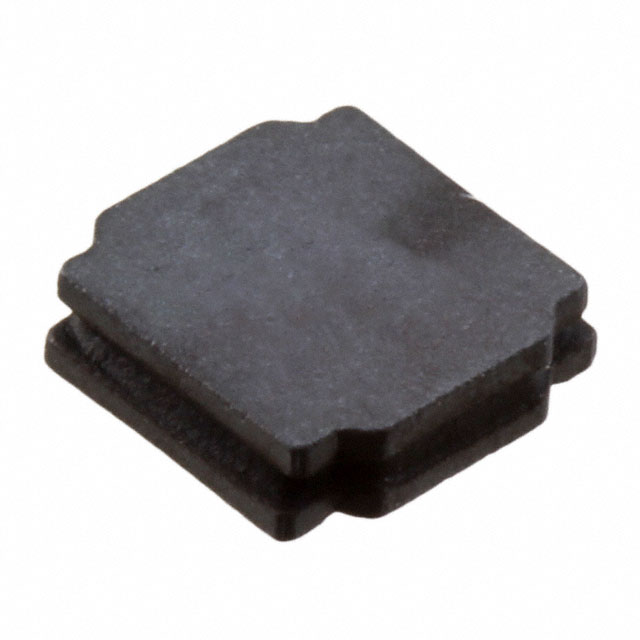

47 µH Shielded Inductor 370 mA 1.1Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | TYS4012470M-10 |
|---|---|
| Current - Saturation (Isat) | 350 mA |
| Current Rating | 0.37 A |
| DC Resistance (DCR) (Max) | 1.1 Ohm |
| Frequency - Self Resonant | 12 MHz |
| Height - Seated (Max) | 0.047 in |
| Inductance | 47 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
| Tolerance | 20 % |
