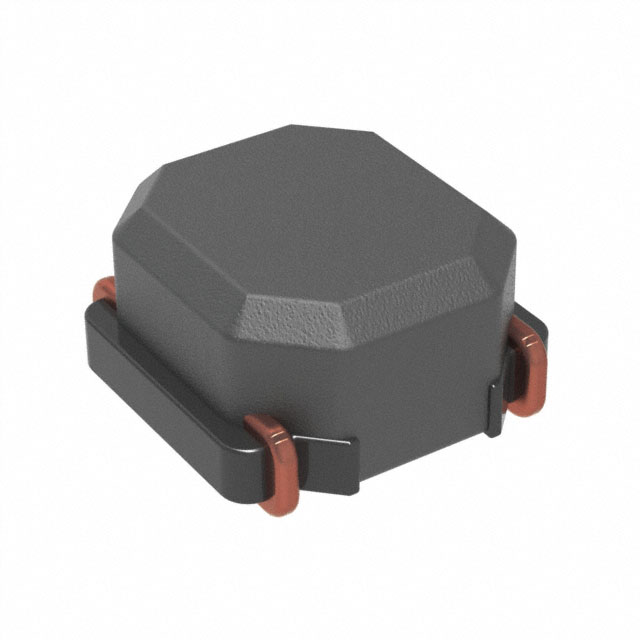

LMLP03A2M220CTAR
ActiveKYOCERA AVX
FIXED IND 22UH 420MA 630MOHM SMD
LMLP03A2M220CTAR
ActiveKYOCERA AVX
FIXED IND 22UH 420MA 630MOHM SMD
Description
General part information
LMLP03A2M220CTAR
22 µH Shielded Inductor 420 mA 630mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LMLP03A2M220CTAR |
|---|---|
| Current - Saturation (Isat) | 0.37 mA |
| Current Rating | 0.42 A |
| DC Resistance (DCR) | 630 mOhm |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 20 % |
