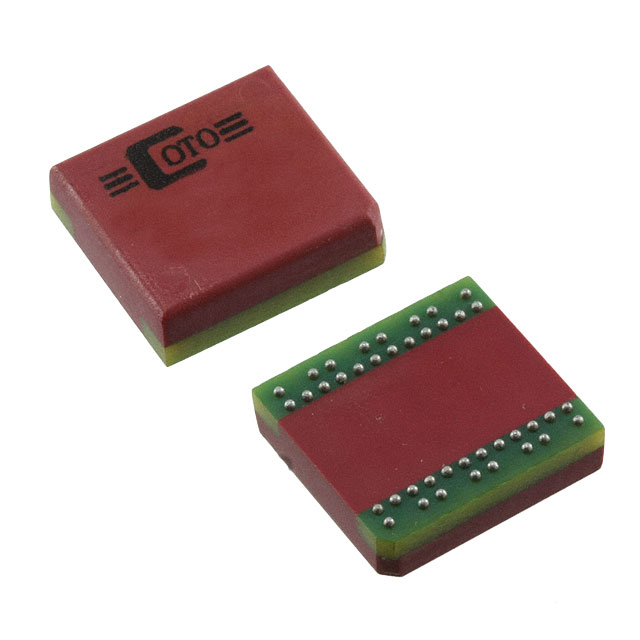

B41-0002
ObsoleteCOTO TECHNOLOGY
RELAY RF SPST-NO X 4 250MA 3.3V
B41-0002
ObsoleteCOTO TECHNOLOGY
RELAY RF SPST-NO X 4 250MA 3.3V
Description
General part information
B41-0002
RELAY RF SPST-NO X 4 250MA 3.3V
Technical Specifications
Parameters and characteristics for this part
| Specification | B41-0002 |
|---|---|
| Coil Current | 0.06 A |
| Coil Resistance | 55 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 3.3 VDC |
| Contact Form | Form, A, 1, SPST-NO |
| Contact Form Quantity | 4 pcs |
| Contact Rating (Current) | 250 mA |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 2.4 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 0.1 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 0.03 ms |
| Switching Voltage AC (Max) | 125 VAC |
| Switching Voltage DC (Max) | 125 VDC |
| Termination Style | BGA |
