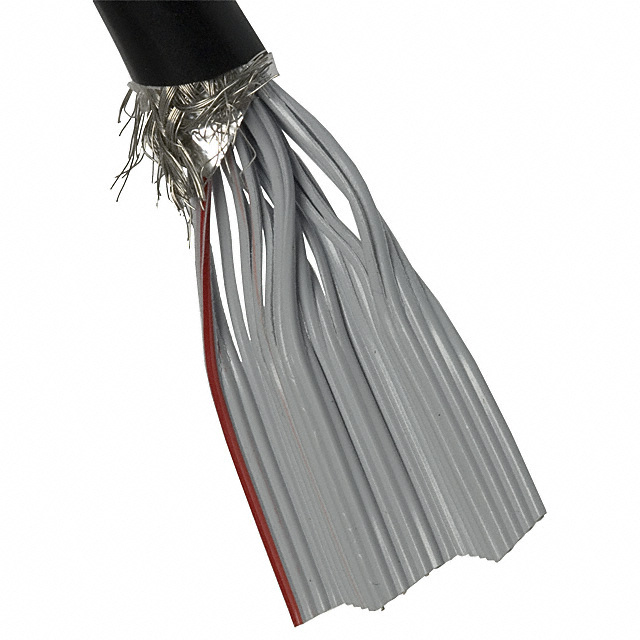

3659/24 300SF
Active3M Electronic Specialty
CBL RIBN 24COND 0.05 BLACK 300'
3659/24 300SF
Active3M Electronic Specialty
CBL RIBN 24COND 0.05 BLACK 300'
Description
General part information
3659/24 300SF
CBL RIBN 24COND 0.05 BLACK 300'
Technical Specifications
Parameters and characteristics for this part
| Specification | 3659/24 300SF |
|---|---|
| Cable Type | Round Jacket, Flat Cable |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 36 AWG |
| Features | Splice Free, Zippable |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 300 ft |
| Number of Conductors | 24 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.05 in |
| Ratings | Style, UL, 20267 |
| Ribbon Width | 1.15 in |
| Shielding | Shielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
