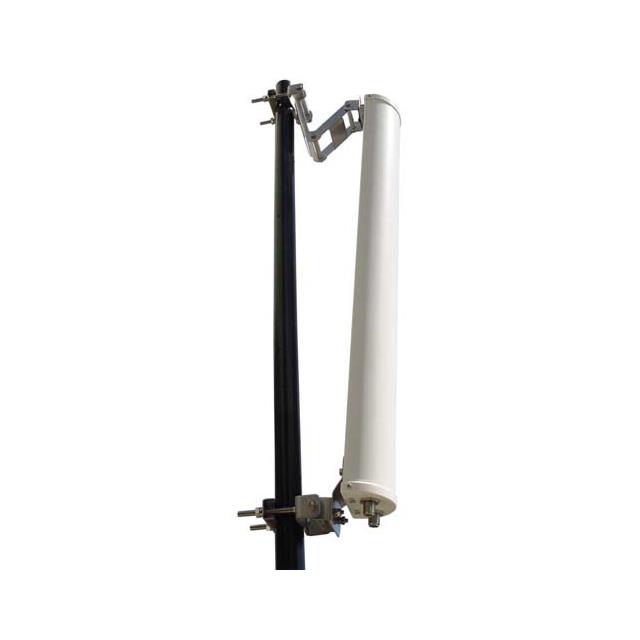

HG5158-16DP-120
ActivePasternack
ANTPANEL 5.1-5.8GHZ 16DBI
HG5158-16DP-120
ActivePasternack
ANTPANEL 5.1-5.8GHZ 16DBI
Description
General part information
HG5158-16DP-120
RF ANTENNA 802.11a/n, ISM, Wi-Fi, WiMax, WISP, WLAN Sector N Type Female (2) Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG5158-16DP-120 |
|---|---|
| Antenna Type | Sector |
| Applications | WLAN, Wi-Fi, 802.11a/n, WiMax, ISM, WISP |
| Frequency (Center/Band) | 5.5 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 5100 MHz |
| Gain | 16 dBi |
| Height (Max) | 2.5 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi, General ISM |
| Termination Count | 2 |
| Termination Type | N Type Female |
| VSWR | 1.8 |
