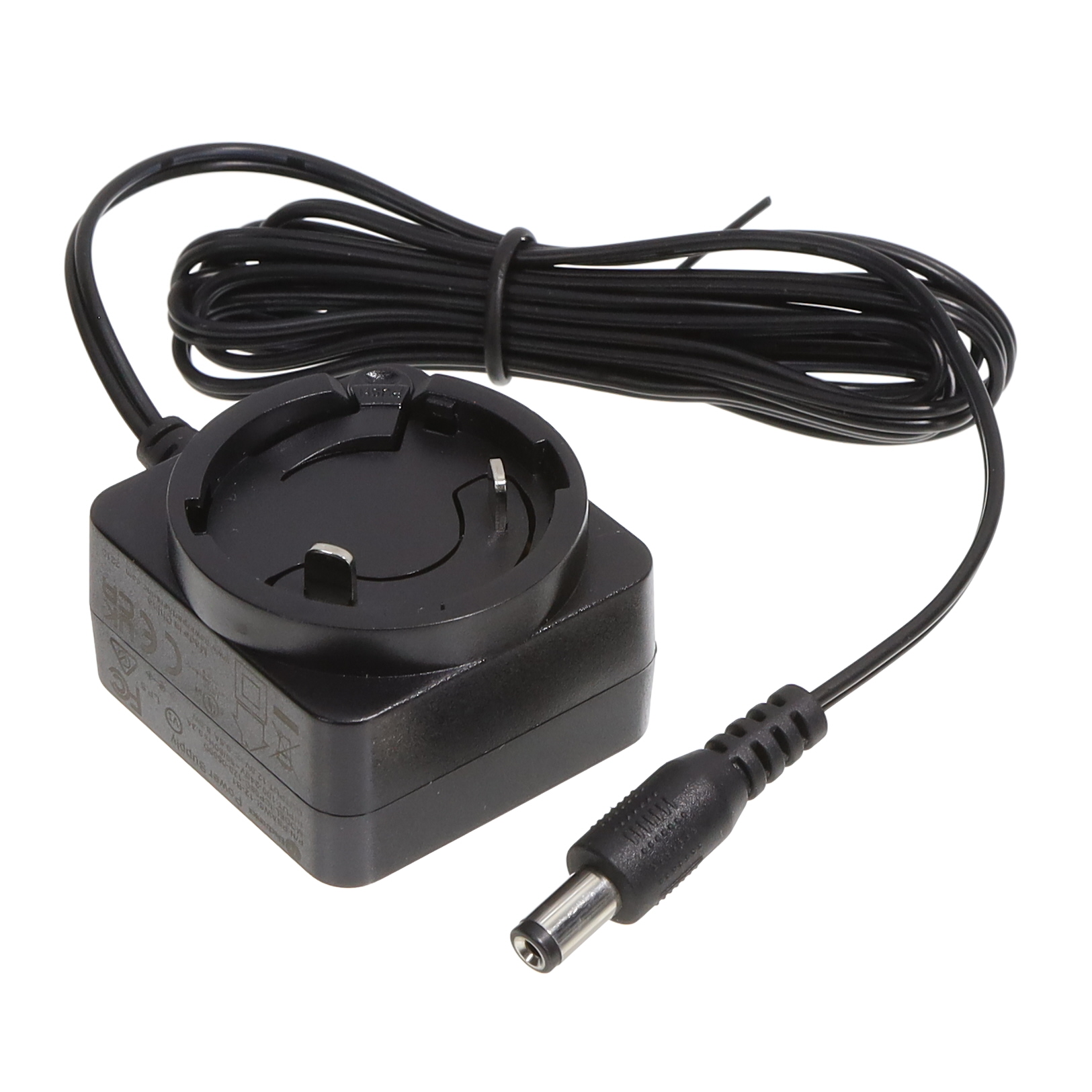

PSAW6I-12-B1
ActiveTT Electronics/BI
AC/DC WALL MOUNT ADAPTER 12V 6W
PSAW6I-12-B1
ActiveTT Electronics/BI
AC/DC WALL MOUNT ADAPTER 12V 6W
Description
General part information
PSAW6I-12-B1
AC/DC WALL MOUNT ADAPTER 12V 6W
Technical Specifications
Parameters and characteristics for this part
| Specification | PSAW6I-12-B1 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CCC, UL, UKCA, PSE, CB |
| Current - Output (Max) | 500 mA |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 6 W |
| Region Utilized | International |
| Size / Dimension Height | 0.9 in |
| Size / Dimension Length | 1.72 in |
| Size / Dimension Width | 1.61 in |
| Standard Number | 62368-1 |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 12 V |
