Description

General part information

ZB5AA68

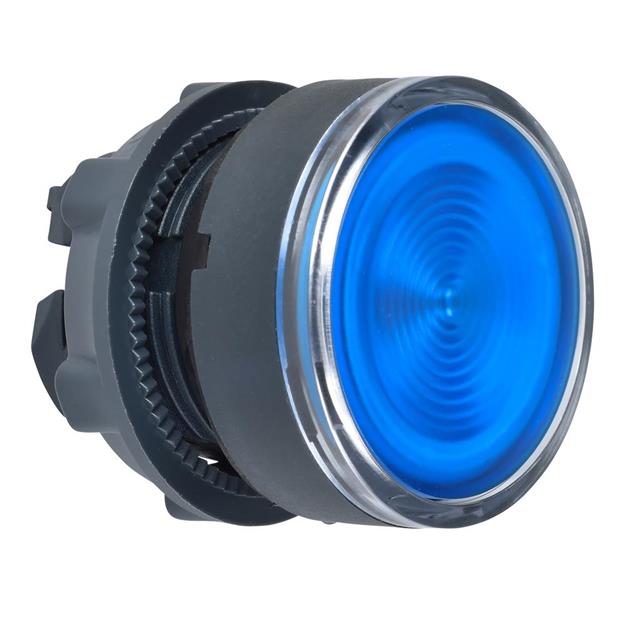

ZB5AA68 is a head for an illuminated pushbutton. This blue flush button head with a transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is used for the insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact-resistant, dust-resistant, water resistant and vibration-resistant thanks to its IP69K. This makes it ideal for operation in harsh environments. It has standards like EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-1, UL 508, GB 14048.5, CSA C22.2 No 14, JIS C8201-1. It is certified by BV, CSA, GL, LROS (Lloyds register of shipping), UL listed, DNV.

Technical Specifications

Parameters and characteristics for this part

SpecificationZB5AA68
Actuator TypePushbutton, Round
Compatible SeriesHarmony XB5, Schneider
IlluminationIlluminated
Panel Cutout Dimension22 mm
Panel Cutout ShapeRound
RequiresIllumination Source, Contact Block(s)
TypeMomentary
