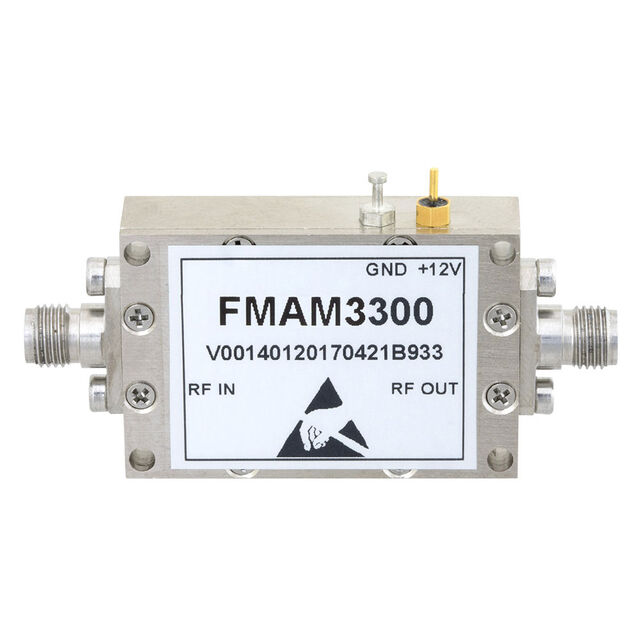

FMAM3300
ActiveFairview Microwave
LOWNOISEAMP 26500MHZ-40GHZ P1DB
FMAM3300
ActiveFairview Microwave
LOWNOISEAMP 26500MHZ-40GHZ P1DB
Description
General part information
FMAM3300
RF Amplifier IC General Purpose 26.5GHz ~ 40GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM3300 |
|---|---|
| Current - Supply | 110 mA |
| Frequency (Max) | 40 GHz |
| Frequency (Min) | 26.5 GHz |
| Gain | 43 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 2 dB |
| P1dB | 12 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
