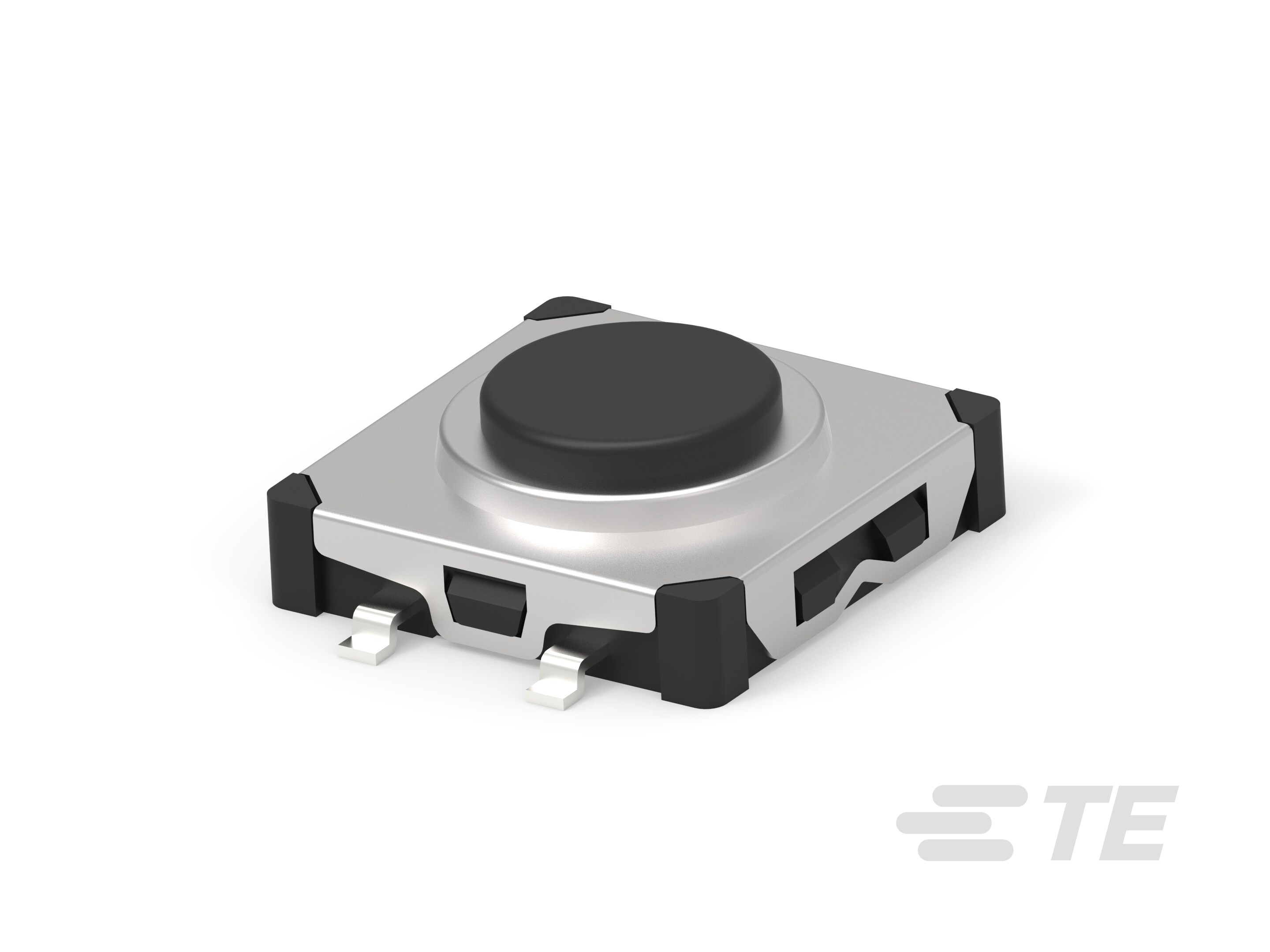

Specification	1571218-3

Actuator Height off PCB (Vertical)	4.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Features	Fully, Sealed
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Surface Mount
Operating Force	160 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-35 °C
Outline Length	12 mm
Outline Width	12 mm
Switch Function	Off-Mom
Termination Style	Gull Wing
