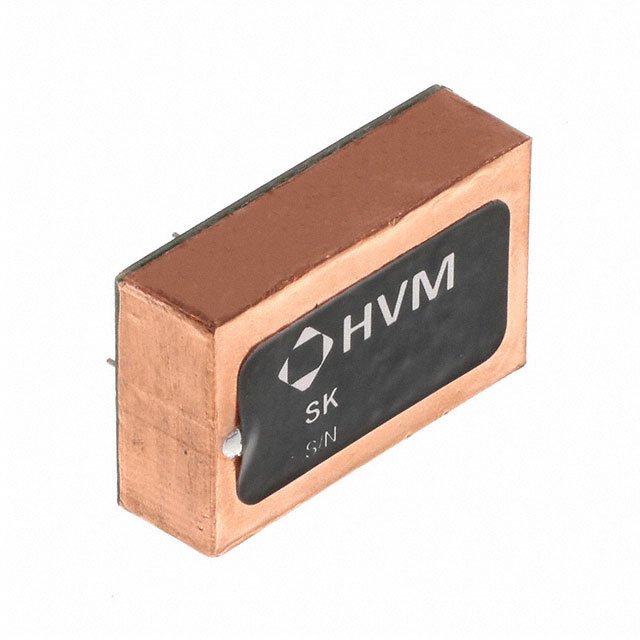

SK0540

Active

HVM Technology, Inc.

DC DC CONVERTER 4000V 1W

Search across all available documentation for this part.

Active

HVM Technology, Inc.

DC DC CONVERTER 4000V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SK0540	SK05 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	250 µA	250 - 333 µA
Efficiency	60 %	60 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	5-DIP Module	5-DIP Module
Size / Dimension [x]	44.5 mm	44.5 mm
Size / Dimension [x]	1.75 "	1.75 "
Size / Dimension [y]	1.1 in	1.1 in
Size / Dimension [y]	27.9 mm	27.9 mm
Size / Dimension [z]	0.5 in	0.5 in
Size / Dimension [z]	12.7 mm	12.7 mm
Type	High Voltage - Non-Isolated Module	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output 1	4000 V	-4000 - 4000 V

DC DC CONVERTER 3000V 1W

Part	Voltage - Output 1	Voltage - Input (Max) [Max]	Applications	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Efficiency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
HVM Technology, Inc. SK0530	3000 V	5.5 V	ITE (Commercial)	1	4.5 V	333 µA	60 %	Through Hole	-40 °C	60 °C	High Voltage - Non-Isolated Module	5-DIP Module	44.5 mm	1.1 in	1.75 "	0.5 in	12.7 mm	27.9 mm
HVM Technology, Inc. SK0540N	-4000 V	5.5 V	ITE (Commercial)	1	4.5 V	250 µA	60 %	Through Hole	-40 °C	60 °C	High Voltage - Non-Isolated Module	5-DIP Module	44.5 mm	1.1 in	1.75 "	0.5 in	12.7 mm	27.9 mm
HVM Technology, Inc. SK0540	4000 V	5.5 V	ITE (Commercial)	1	4.5 V	250 µA	60 %	Through Hole	-40 °C	60 °C	High Voltage - Non-Isolated Module	5-DIP Module	44.5 mm	1.1 in	1.75 "	0.5 in	12.7 mm	27.9 mm
HVM Technology, Inc. SK0530N		5.5 V	ITE (Commercial)	1	4.5 V	333 µA	60 %	Through Hole	-40 °C	60 °C	High Voltage - Non-Isolated Module	5-DIP Module	44.5 mm	1.1 in	1.75 "	0.5 in	12.7 mm	27.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 253.75

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output 4000V 250µA 4.5V - 5.5V Input
